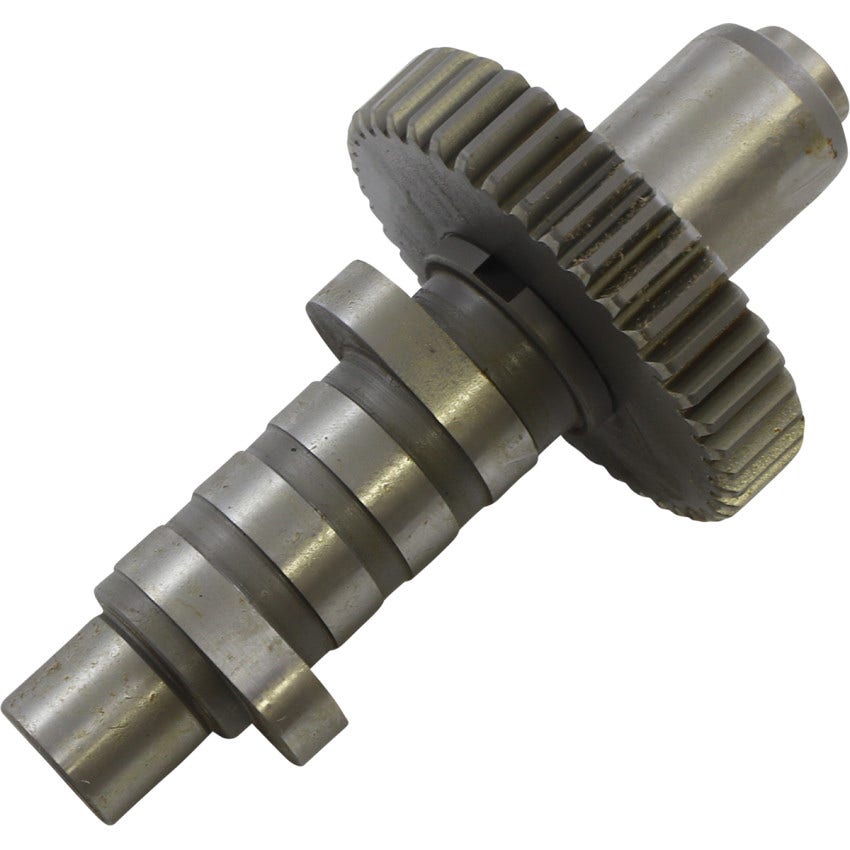

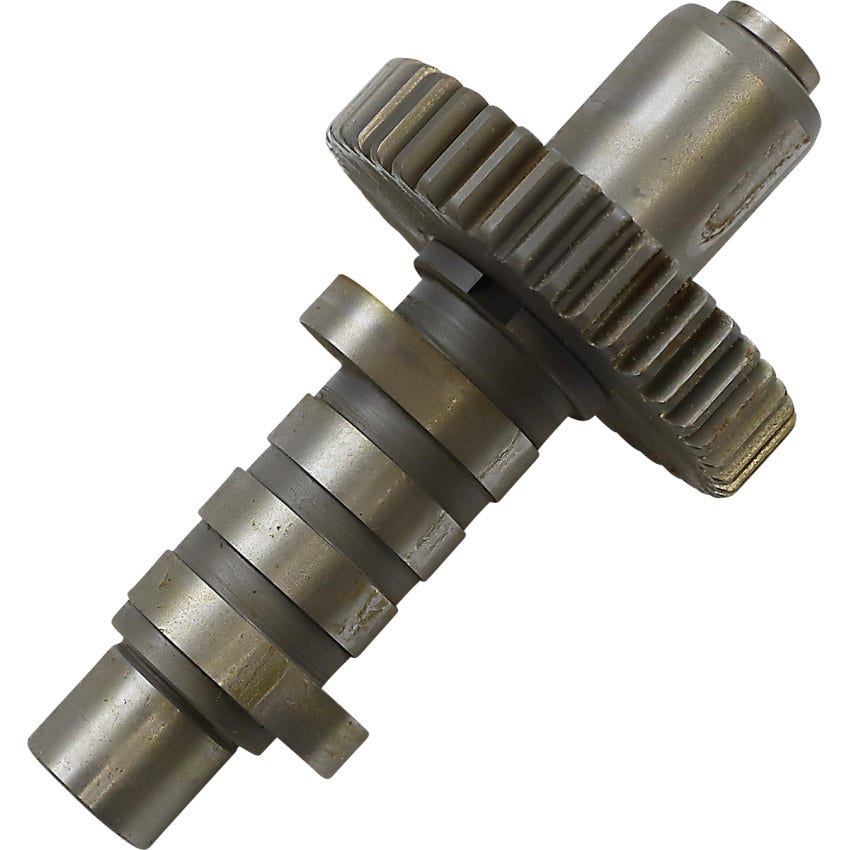

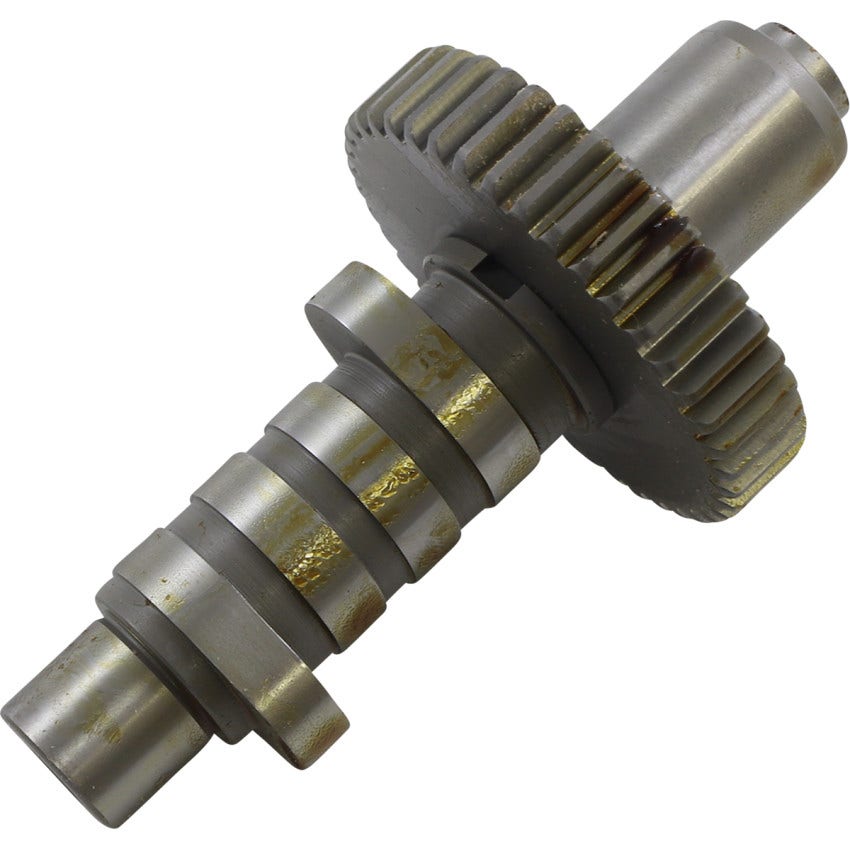

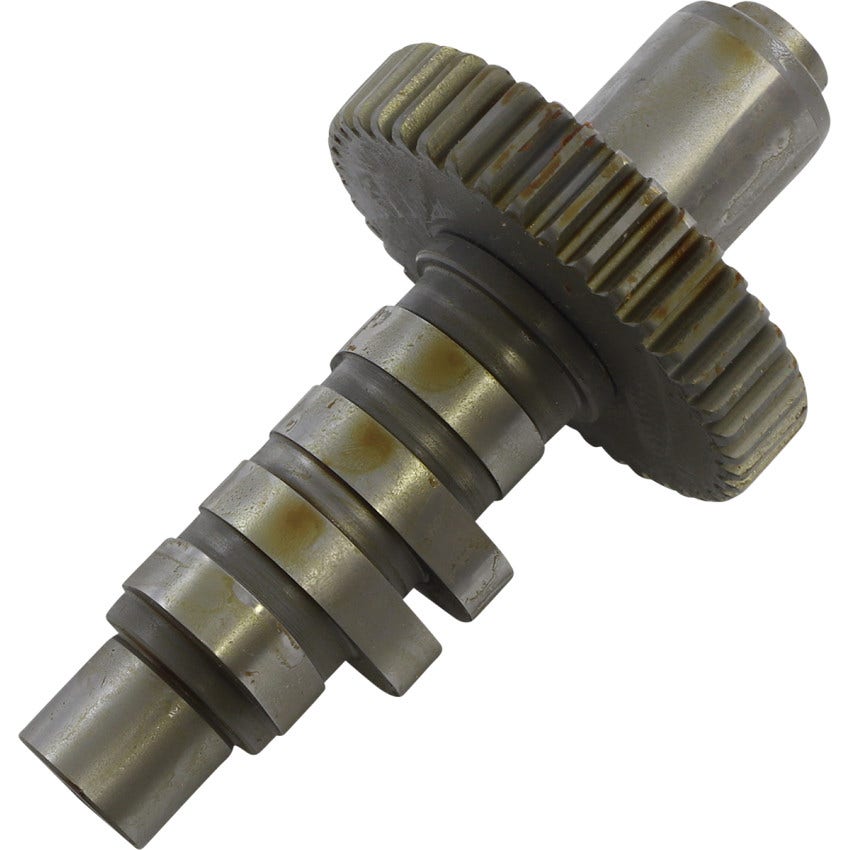

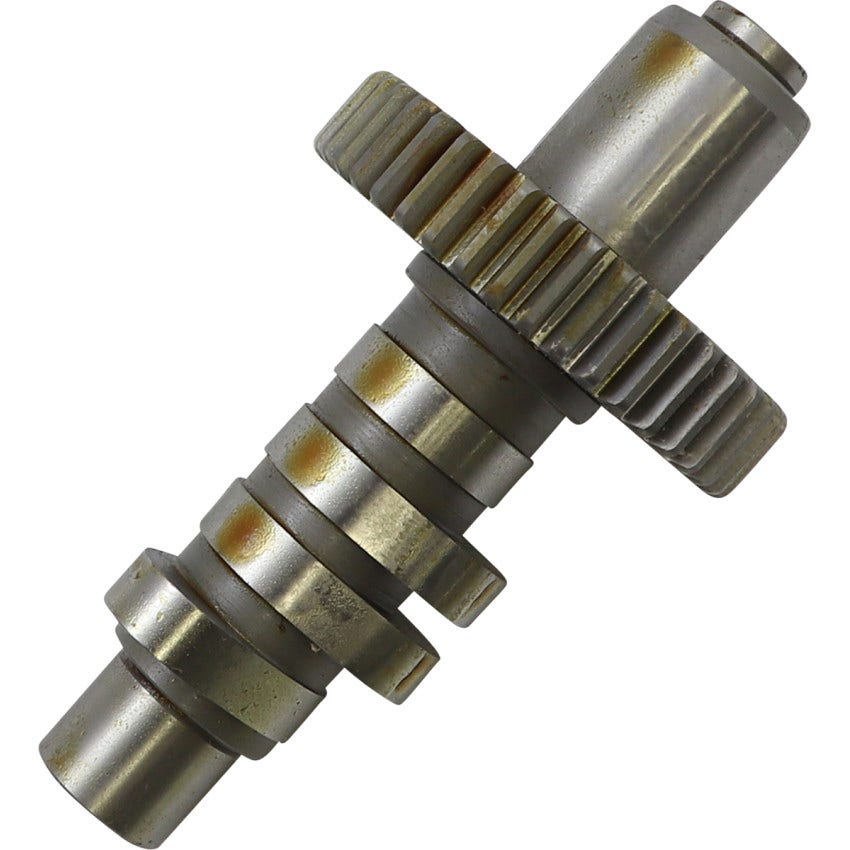

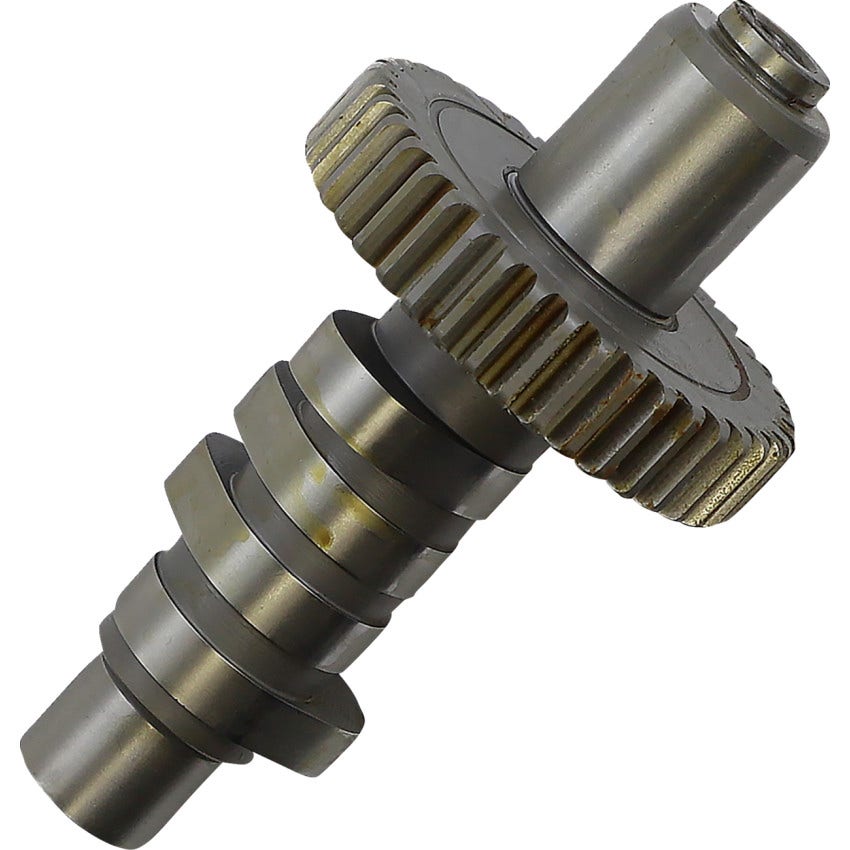

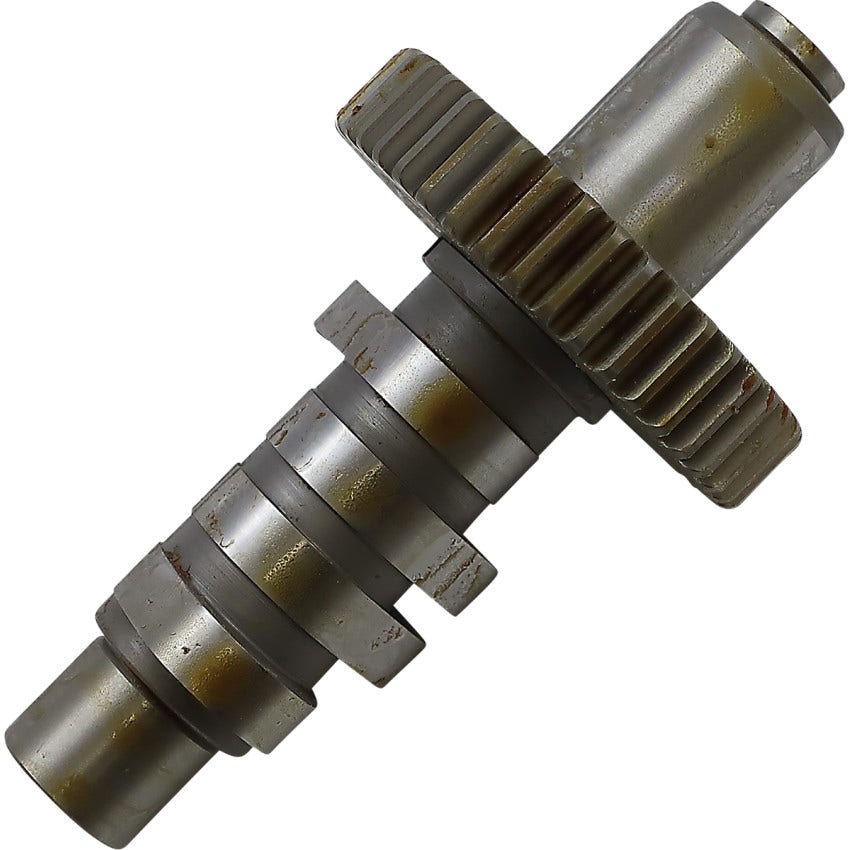

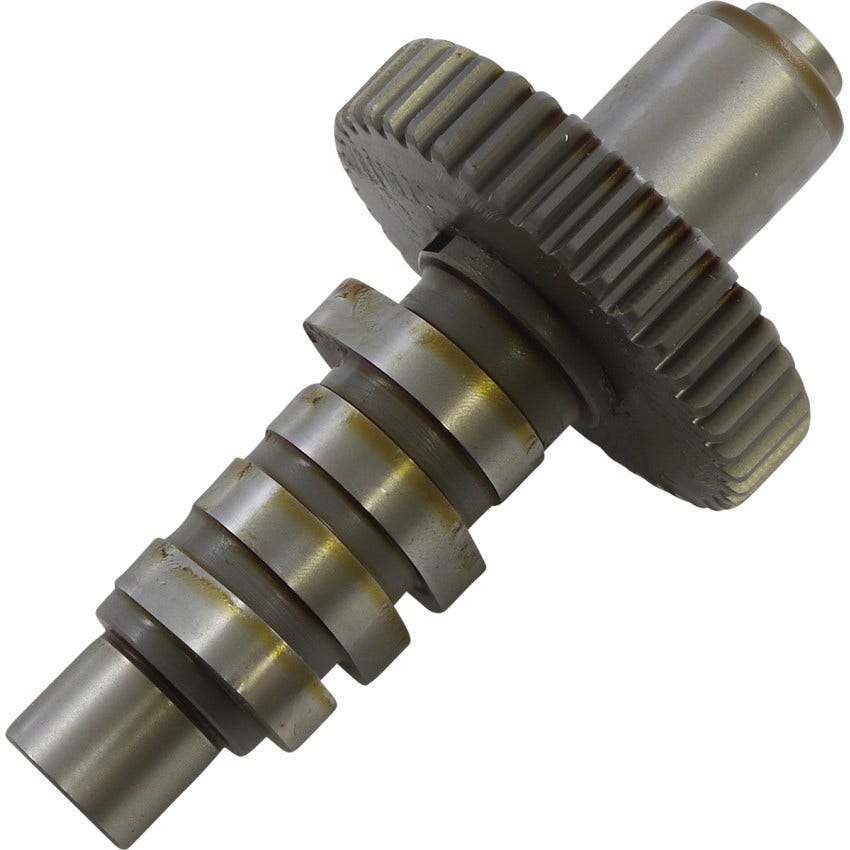

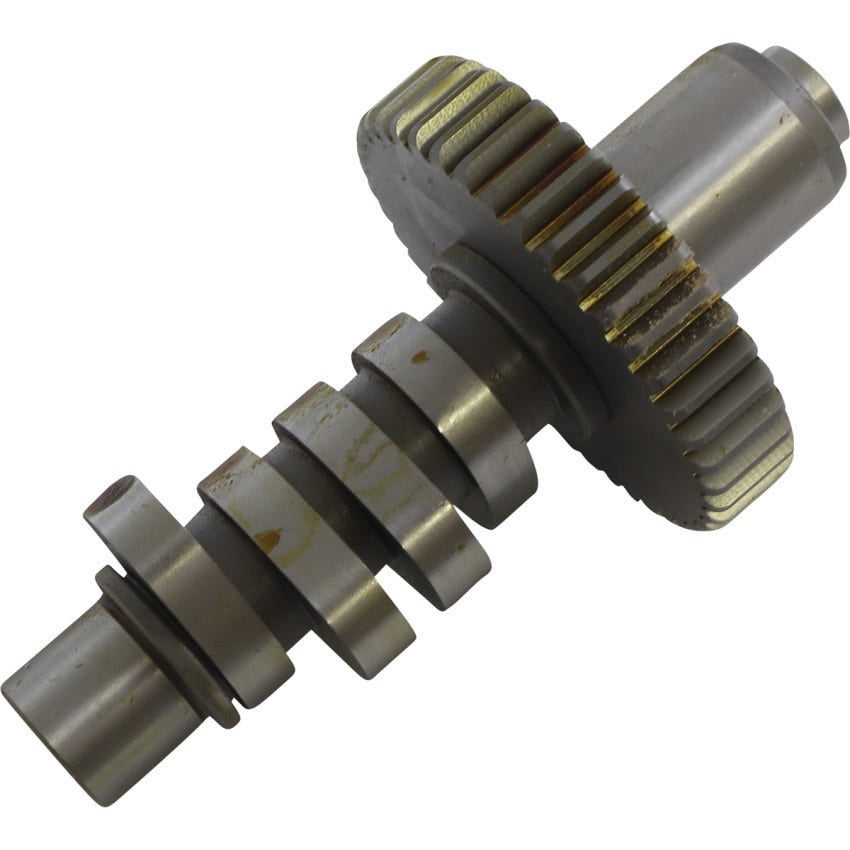

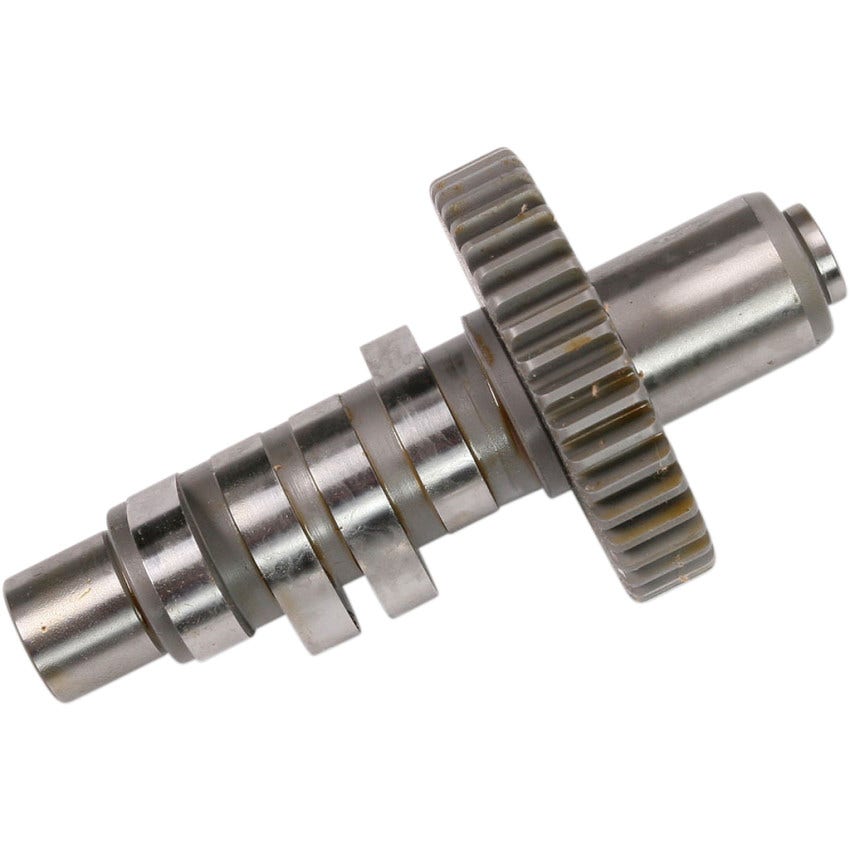

Andrews Evolution Cams Camshafts for Harley Davidson EVO 84-99

Andrews Products high-performance camshafts are designed using advanced computer technology to deliver the ultimate balance of performance and reliability. Engineered for Harley-Davidson Shovelhead and Evolution Big Twin engines, these cams are manufactured from premium alloy steel billets and undergo rigorous heat-treating processes to ensure long-lasting durability.

Whether you are looking for a bolt-in street cam to improve mid-range torque or a high-lift grind for modified racing motors, this selection of camshafts offers versatile powerband options ranging from 1,500 to 6,500+ rpm. Many of these grinds are designed to work seamlessly with stock springs and hydraulic lifters, capable of reaching 6,000-plus rpm without valve float. Selected profiles also feature fast open and close ramps to provide crisp throttle response and cooler operating temperatures.

Key Features:

• Computer-designed profiles for maximum performance and reliability.
• Manufactured from high-grade alloy steel billets.
• Options available for stock, modified street, and touring applications.
• Capable of 6000-plus rpm with stock springs (depending on specific variant).
• Compatible with both carbureted and fuel-injected models.
• Made in the U.S.A.

Technical Note: Installation requirements vary by profile. While many are "bolt-in" applications, high-lift variants may require high-lift springs and titanium collars. Always check for coil bind, valve-to-valve clearance, and valve-to-piston clearance during installation. Suitable for use with hydraulic lifters.

Compatibility:

Fits 1984-1999 Evolution Big Twin models. Please refer to specific variant specifications for timing, duration, and lift attributes to match your engine requirements.

EV3 Grind Cam:

• Capable of 6000+ rpm with stock springs and no valve float
• A 6000+ rpm cam for stock heads and springs with hydraulic lifters
• Bolt-in cam for light bikes (FXRS, etc.) adds significant mid-range power without affecting idle

EV5 Grind Cam:

• More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
• Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders

EV7 Grind Cam:

• Capable of 6000+ rpm with stock springs and no valve float
• Excellent in the 2800-6500 rpm range
• Designed for big-inch stroker motors with head work
• Uses stock springs
• Works with stock hydraulics, with stock spring travel set to .560" minimum

EV13 Grind Cam:

• Capable of 6000+ rpm with stock springs and no valve float
• Bolt-in cam for street or touring use with more mid-range and upper-end power than the stock 88 EV cams
• Uses stock springs; works with carbs or fuel injection
• Especially effective in reducing oil temperature

EV23 Grind Cam:

• Capable of 6000+ rpm with stock springs and no valve float
• Bolt-in cam for heavier touring bikes and high-geared bikes with 65-tooth rear pulleys
• Uses stock springs; works with carbs or fuel injection
• Crisp throttle response and strong pulling power from 1500 to 6000 rpm
• Works well in higher altitudes

EV27 Grind Cam:

• Capable of 6000+ rpm with stock springs and no valve float
• Bolt-in street cam with fast open and close ramps
• Uses stock springs; works with carbs or fuel injection
• Pulls from 1500 to 6000 rpm
• Similar timing to EV3, but designed to produce a very broad torque band

EV38 Grind Cam:

• Lower Lift exhaust for easy installation
• Bolt in for lighter Bikes (FXLR etc)
• Great Mid Range and High end power
• Longer Exhaust cam lowers oil temp

EV46 Grind Cam:

• Bolt in performance cam with fast open and close ramps
• Similar to EV3 but higher statis compression pressure for 4000+ rpm with stock heads and hydraulic lifters

EV51 Grind Cam:

• Easy installation
• Works with stock hydraulics
• Long duration for modified street motors
• Power range from 3000-6500 rpm

EV59 Grind Cam:

• Designed for modified 80" to 88" motors
• For use with high lift springs and collars
• Very broad powerband to 6000 rpm

EV72 Grind Cam:

• For use with Andrews springs and titanium collars
• OK for use with hydraulic lifters
• Very broad powerband, 2800-6000 rpm
• Upgraded EV7, for 92" or larger street motors

1984-1999 Harley Evolution Big Twin Models
