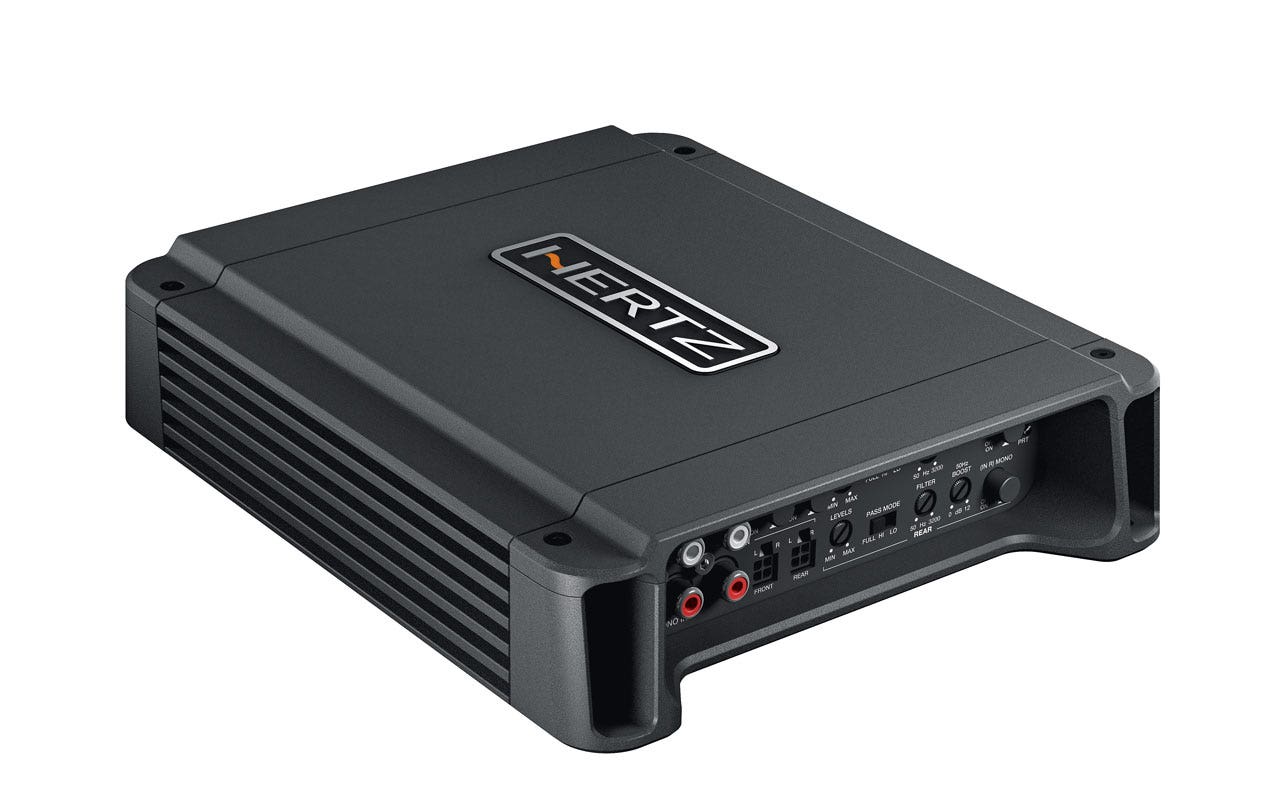

Hertz Compact Power HCP 4D D-Class Four Channel Amplifier

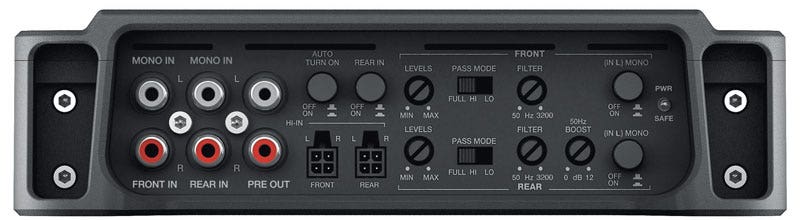

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Fits:

Channel mode	4 - 3 - 2
Output Power (RMS)  @ 14.4 VDC	4 Ch: 85 W x 4 (4 ?) 4 Ch: 145 W x 4 (2 ?) 3 Ch: 85 W x 2 (4 ?) + 290 W x 1 (4 ?) 3 Ch: 145 W x 2 (2 ?) + 290 W x 1 (4 ?) 2 Ch: 290 W x 2 (4 ?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass	Yes A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. -
Distortion - THD  (100Hz @ 4Ω)	0.02%
S/N Ratio  (A weighted @ 1V)	100 dB
Damping factor  (100Hz @ 4Ω)	200
Size W x D x H  mm (in.)	215 x 190 x 50 (8.46 x 7.48 x 1.97)
