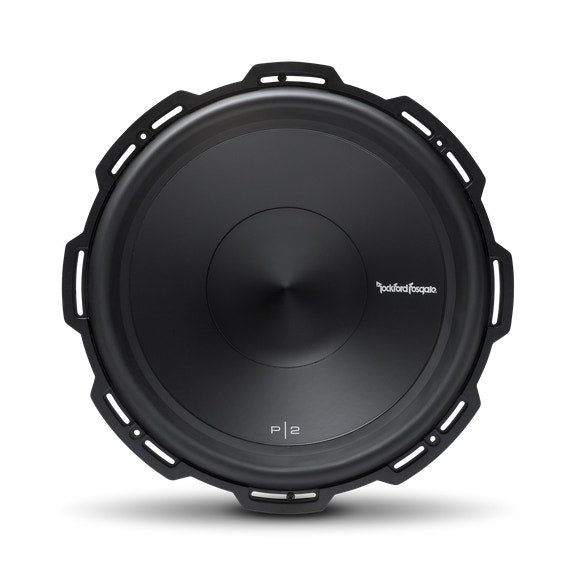

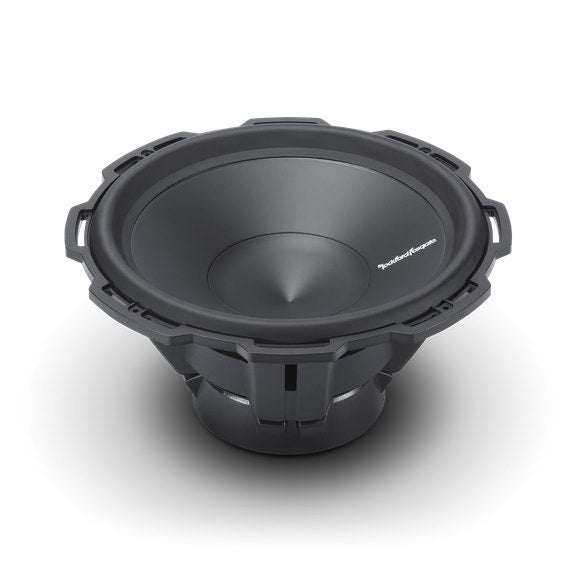

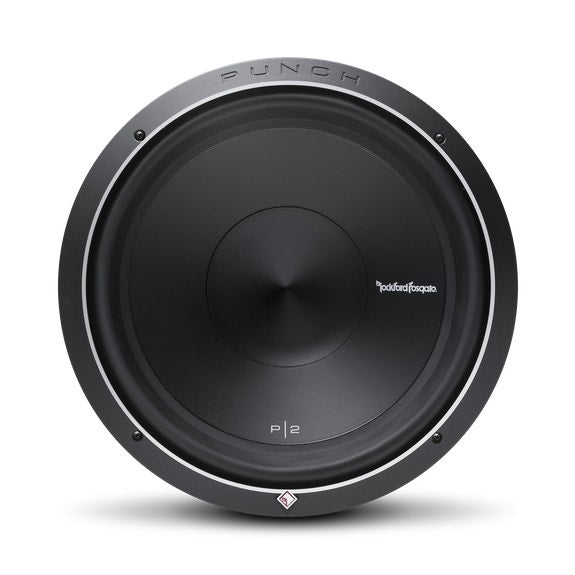

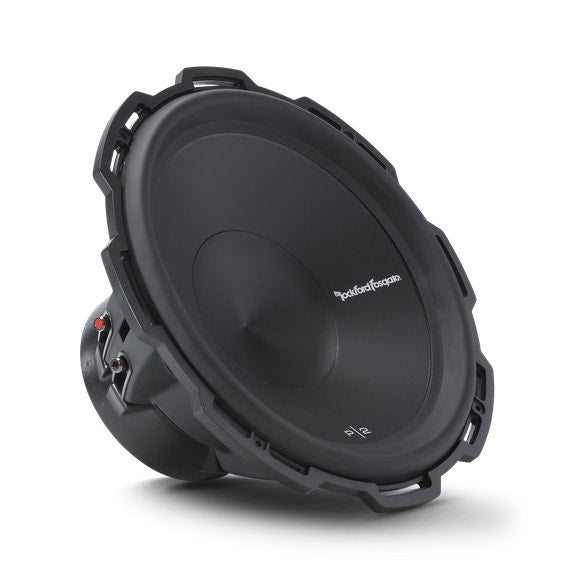

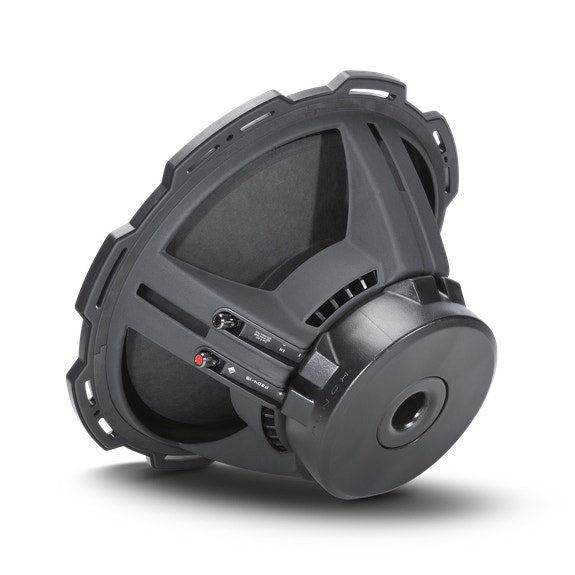

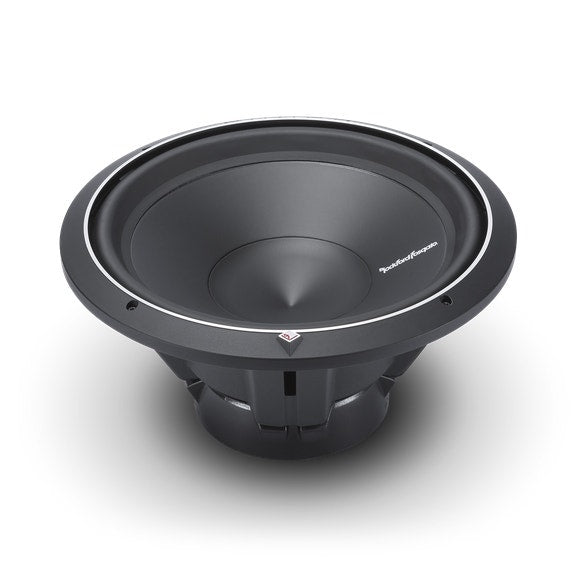

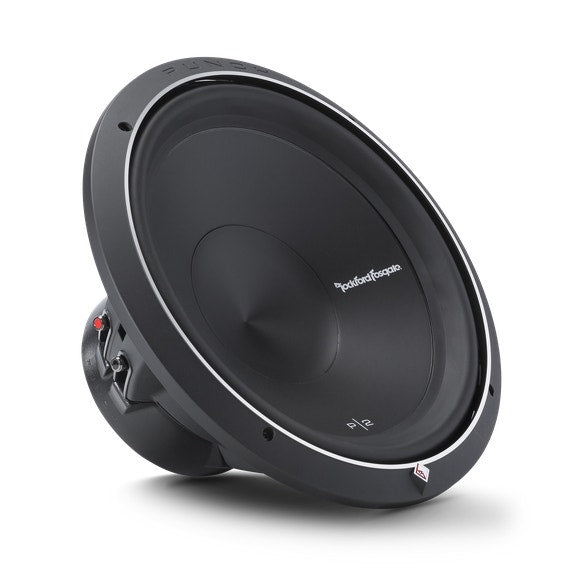

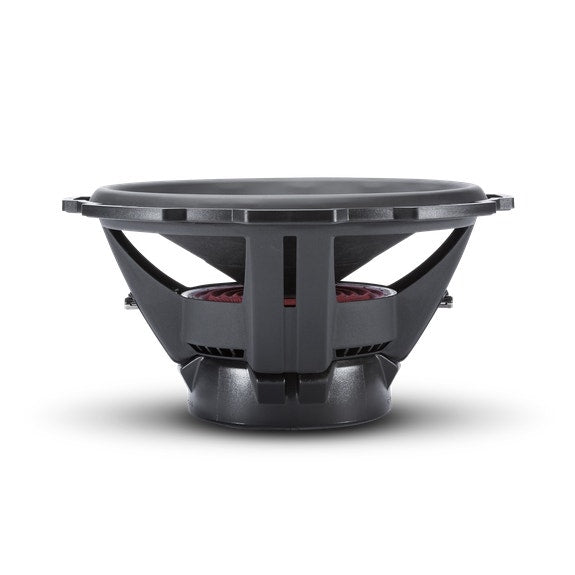

Rockford Fosgate P2D4-15 Punch P2 15" 800W Dual 4Ohm DVC Car Audio Subwoofer Sub

Only 1 left
SKU: RF-P2D4-15
Regular price $259.99

The Rockford Fosgate P2 15” subwoofer continues “The PUNCH” tradition. The P2D4-15 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.

Rockford Fosgate has always been known as "The PUNCH" and the P2 15" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

  • Dual linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • 1 Year Warranty
Power Handling (Watts RMS)
400 Watts RMS
800 Watts Max
Size
15"
Speaker Connector
Dual 10 AWG compression
Shipping Weight
17.9 Lbs. (8.11 kg)
SPL (dB @ 1w/1m)
86
Cutout Diameter
13.9 in. (353 mm)
Re (Ohms)
6.40
Le (mH)
5.4
Nominal Impedance
Dual 4-Ohm
Magnet Weight (oz)
81 oz. (2.30 kg.)
Voice Coil Diameter
2.25" (57.15 mm)
Mounting Depth
7.34 in. (186.5 mm)
Fs (Hz)
20.9
Qts
0.66
Qes
0.74
Qms
5.70
Vas (Liters)
219.6
Woofer Displacement
0.134 cu. ft. (3.8 Liters)
Xmax (mm)
12.2
Sd (cm2)
894
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.58 cu. ft. (44.7 Liters)
Vented Box Volume (Vb)
2.66 cu. ft. (75.3 Liters)

Universal 12V Automotive Applications
