IN BRAND NEW CONDITION

PART # T500-1bdCP

Fits: Universal 12V Automotive Applications

The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.

24dB/octave crossover
MOSFET power supply
MOSFET output stage

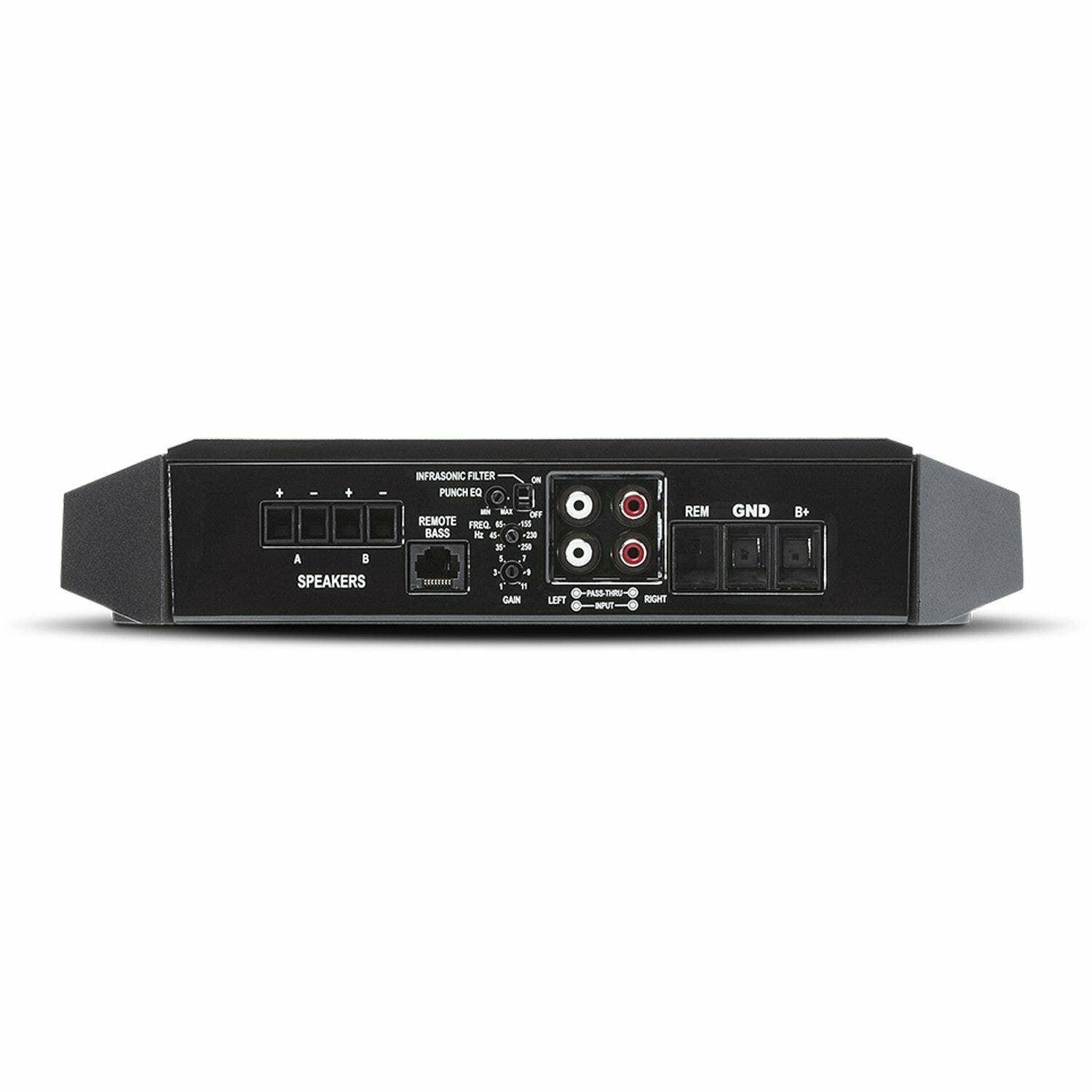

4 Gauge power/ground connectors
Audiophile grade speaker connections
RCA pass-thru outputs
Infrasonic filter
2 Year Warranty

Rated Power (RMS Continuous Power)

300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm

Number of Channels: 5

Frequency Response: 20Hz to 250Hz +/- 0.5dB

Power Wire Gauge: 4 AWG

Speaker Wire Gauge: 8 AWG

Operating Voltage: 9 - 16 VDC

Average Current Draw: (13.8V Music) 35 A

Max. Current Draw: (13.8V Sinewave) 75 A

Dimensions: (H x W x D) 2.14 x 8.14 x 11.41 (in)

Country/region

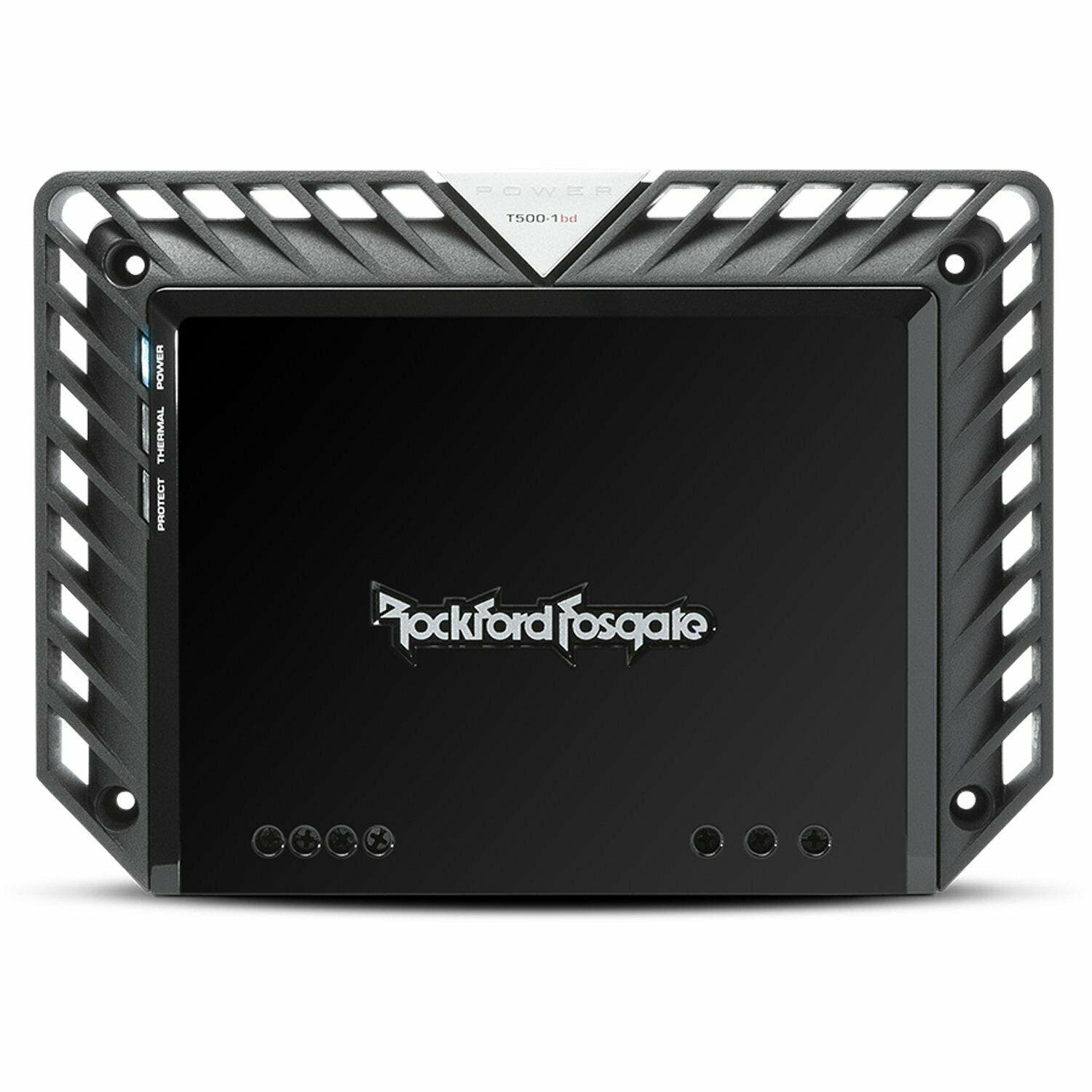

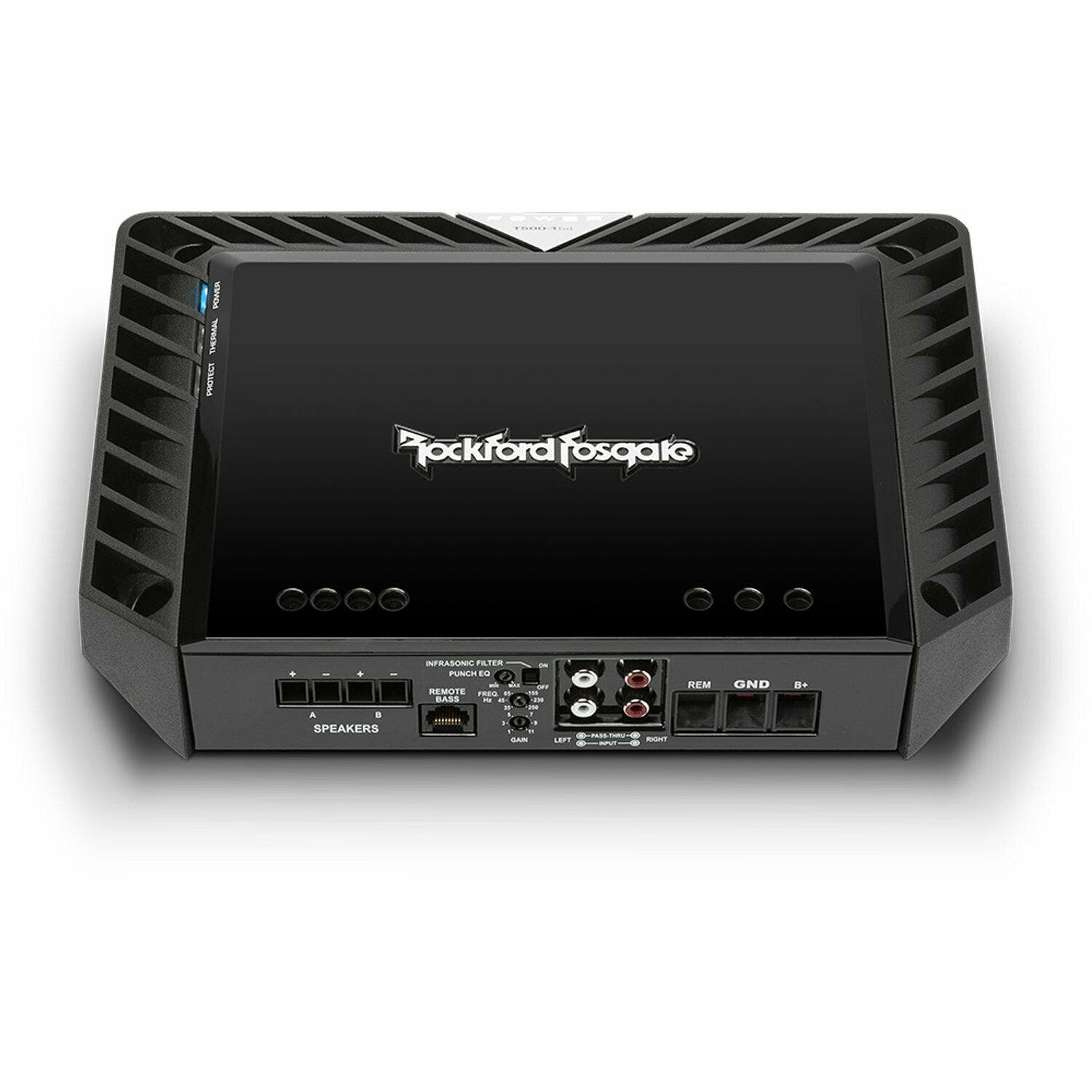

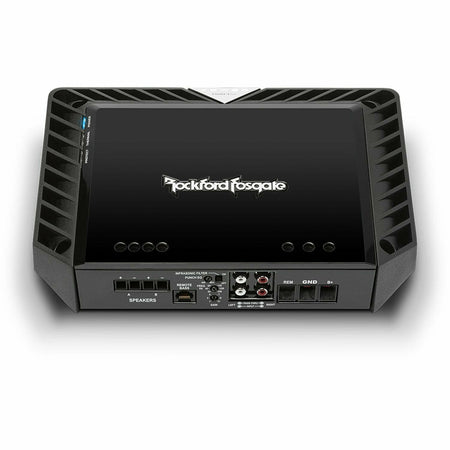

Rockford Fosgate T500-1bdCP Power 500 Watt Mono Car Stereo Subwoofer Amplifier
