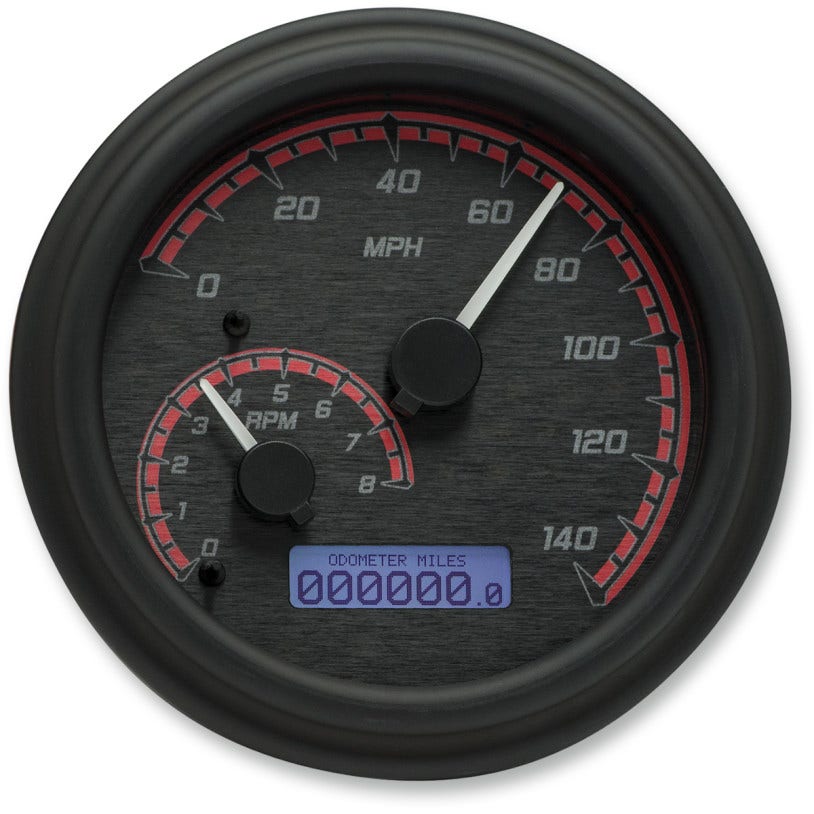

Dakota Digital MVX-2002-KR-K Black/Red & Black MVX Gauge Speedo Tach HD 96-03

• Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
• Systems for 96-03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
• Four different face options available: black with red accents, black with gray accents, white with red accents and white with gray accents
• 8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout
• Resettable miles to service with a warning (user settable countdown) and hour meter
• Clock function (12-hour format)
• Voltage readout with low-voltage alert
• Cylinder head temperature sensor (if bike is equipped with factory sender unit)
• Oil pressure warning light (sold separately, PART #2212-0513 or DS-250019)
• Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
• Security system indicator
• Automatic turn signal cancelling compatible
• Wait to start/check engine light function
• Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed
• Wiring installation is cut/splice; not a direct plug-in gauge
• Case diameter measures 41/4" and bezel diameter of 45/8"

1996-2003 Harley FLHR; FXST FLST & FXDWG
