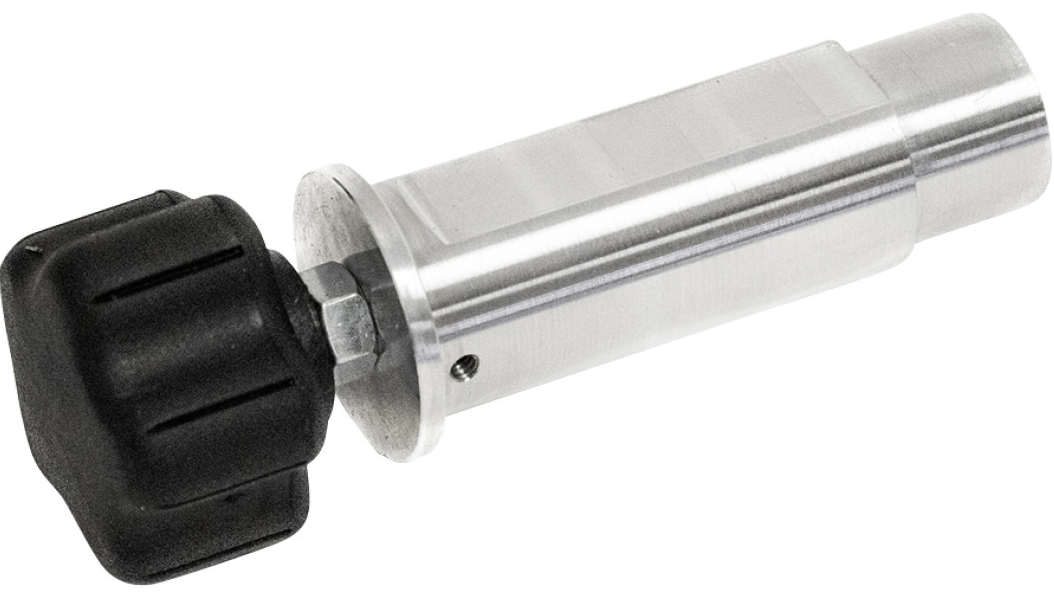

Feuling 9017 Oil Pump Gear Alignment Tool for Harley Twin Cam and M8 Milwaukee 8
Feuling 9017 Oil Pump Gear Alignment Tool for Harley Twin Cam and M8 Milwaukee 8
Regular price
$54.95
Couldn't load pickup availability
- This procedure has proven to provide the best seal on the back scavenge port of the oil pump to engine case as the parts are always going inwards towards the scavenge port
- Lining up the oil pump gear flats with crankshaft flats and installing the complete assembly into the cam chest as one complete unit
- Rotate the crankshaft flats so they are horizontal and align oil pump gear flats horizontal to match for Twin Cam engines
- M8 engines rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match
- Align the oil pump gear flats with the flats of the crankshaft
| Years | Make | Models |
|---|---|---|
| 2023 | Harley-Davidson | FLHFB Electra Glide Highway King, FXBR Breakout 117 |
| 2022-2023 | Harley-Davidson | FLTRKSE CVO Road Glide Limited, FLTRXST Road Glide ST, FLHXST Street Glide ST, FXLRS Low Rider S 117, FXLRST Low Rider ST 117 |
| 2021-2023 | Harley-Davidson | FXBBS Street Bob 114 |
| 2020-2023 | Harley-Davidson | FLTRK Road Glide Limited, FXST Softail Standard 107 |
| 2018-2021, 2023 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2018-2023 | Harley-Davidson | FLFBS Fat Boy 114, FLHCS Heritage Classic 114 |
| 2017-2023 | Harley-Davidson | FLHRXS Road King Special, Road King Police FLHP |
| 2015-2023 | Harley-Davidson | FLTRXS Road Glide Special |
| 2015, 2017-2023 | Harley-Davidson | FLTRX Road Glide |
| 2014-2023 | Harley-Davidson | FLHXS Street Glide Special |
| 2012, 2018-2023 | Harley-Davidson | FLTRXSE CVO Road Glide |
| 2010, 2015-2023 | Harley-Davidson | FLHXSE CVO Street Glide |
| 2010-2023 | Harley-Davidson | FLHTK Ultra Limited |
| 2006-2023 | Harley-Davidson | FLHX Street Glide |
| 1999-2023 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117, Softail Street Bob FXBB |
| 2020-2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2017-2022 | Harley-Davidson | FLHTCUTG Tri Glide Ultra, FLRT Freewheeler |
| 1999-2022 | Harley-Davidson | FLHR Road King |
| 1999-2009, 2019-2022 | Harley-Davidson | FLHT Electra Glide Standard |
| 2021 | Harley-Davidson | FLH Electra Glide Revival |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 |
| 2018-2021 | Harley-Davidson | FLHC Heritage Classic 107, FLSB Sport Glide 107, FLSL Softail Slim 107 |
| 2014-2021 | Harley-Davidson | FLHTKSE CVO Limited |
| 2019-2020 | Harley-Davidson | FXDRS FXDR 114 |
| 2018-2020 | Harley-Davidson | FLDE Deluxe 107, FXBB Street Bob 107, FXBRS Breakout 114, FXLR Low Rider 107 |
| 2018-2019 | Harley-Davidson | FLFB Fat Boy 107, FXBR Breakout 107, FXFB Fat Bob 107 |
| 2015-2019 | Harley-Davidson | FLHTKL Ultra Limited Low |
| 2011-2013, 2016-2019 | Harley-Davidson | FLTRU Road Glide Ultra |
| 2007-2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2016-2017 | Harley-Davidson | FLSS Softail Slim S, FLSTFBS Fat Boy S, FXSE CVO Pro Street Breakout, FXDLS Low Rider S |
| 2013-2017 | Harley-Davidson | FXSB Breakout |
| 2012-2017 | Harley-Davidson | FLS Softail Slim |
| 2010-2017 | Harley-Davidson | FLSTFB Fat Boy Lo |
| 2008-2017 | Harley-Davidson | FXDF Fat Bob |
| 2006-2017 | Harley-Davidson | FXDB Street Bob |
| 2005-2017 | Harley-Davidson | FLSTN Softail Deluxe |
| 2000-2017 | Harley-Davidson | FLSTC Heritage Softail Classic, FLSTF Fat Boy |
| 1999-2009, 2014-2017 | Harley-Davidson | FXDL Dyna Low Rider |
| 1999-2008, 2010-2017 | Harley-Davidson | FXDWG Dyna Wide Glide |
| 2015-2016 | Harley-Davidson | FLHTCUL Electra Glide Ultra Classic Low |
| 2012-2016 | Harley-Davidson | FLD Switchback |
| 2011, 2015-2016 | Harley-Davidson | FLTRUSE CVO Road Glide Ultra |
| 1999-2010, 2016 | Harley-Davidson | FLTR Road Glide |
| 2014-2015 | Harley-Davidson | FLSTNSE CVO Softail Deluxe |
| 2014 | Harley-Davidson | FLHRSE6 CVO Road King, Electra Glide Ultra Classic Low FLHTCUL |
| 2013-2014 | Harley-Davidson | FXSBSE CVO Breakout |
| 2005, 2007-2014 | Harley-Davidson | FXDC Super Glide Custom |
| 2013 | Harley-Davidson | FLTRXSE2 CVO Road Glide Custom, FLHRSE5 CVO Road King, FLHTCUSE8 CVO Ultra Classic Electra Glide |
| 2011-2013 | Harley-Davidson | FLTRX Road Glide Custom, FXS Blackline |
| 2007-2013 | Harley-Davidson | FLHRC Road King Classic |
| 1999-2013 | Harley-Davidson | FLHTC Electra Glide Classic |
| 2012 | Harley-Davidson | FLHXSE3 CVO Street Glide, FLHTCUSE7 CVO Ultra Classic Electra Glide, FLSTSE3 CVO Softail Convertible |
| 2010-2012 | Harley-Davidson | Softail Standard EFI FXSTI |
| 2011 | Harley-Davidson | FLHXSE2 CVO Street Glide, FLHTCUSE6 CVO Ultra Classic Electra Glide, FLSTSE2 CVO Softail Convertible |
| 2008-2011 | Harley-Davidson | FLSTSB Cross Bones, FXCWC Rocker C |
| 2010 | Harley-Davidson | FLHTCUSE5 CVO Ultra Classic Electra Glide, FLSTSE CVO Softail Convertible, Softail Rocker FXCW, FXDFSE2 CVO Dyna Fat Bob |
| 2007-2010 | Harley-Davidson | FXSTC Softail Custom |
| 1999-2010 | Harley-Davidson | FXD Dyna Super Glide |
| 2009 | Harley-Davidson | FLTRSE3 CVO Road Glide, FLHTCUSE4 CVO Ultra Classic Electra Glide, FXSTSSE3 CVO Softail Springer, Fat Boy Lo FLSTFB, FXDFSE CVO Dyna Fat Bob |
| 2008-2009 | Harley-Davidson | FXCW Rocker |
| 2000-2009 | Harley-Davidson | FXST Softail Standard, FXSTB Night Train |
| 2008 | Harley-Davidson | FLHRSE4 Screamin Eagle Road King, FLHTCUSE3 Screamin Eagle Ultra Classic Electra Glide, FXSTSSE2 Screamin Eagle Softail Springer, FXDSE2 Screamin Eagle Dyna |
| 2007 | Harley-Davidson | FLHRSE3 Screamin Eagle Road King, FLHTCUSE2 Screamin Eagle Ultra Classic Electra Glide, FXSTSSE Screamin Eagle Softail Springer, FXDSE Screamin Eagle Dyna |
| 2005-2007 | Harley-Davidson | FLSTSC Softail Springer Classic |
| 2004-2007 | Harley-Davidson | FLHRS Road King Custom |
| 2000-2007 | Harley-Davidson | FXSTD Softail Deuce |
| 2006 | Harley-Davidson | FLHXI Street Glide, FLHTCUSE Screamin Eagle Ultra Classic Electra Glide, FLST Heritage Softail, FLSTI Heritage Softail, FXDI35 Dyna 35th Anniversary Super Glide |
| 2005-2006 | Harley-Davidson | FLSTFSE Screamin Eagle Fat Boy, FLSTNI Softail Deluxe, FLSTSCI Softail Springer Classic, FXDCI Super Glide Custom |
| 2004-2006 | Harley-Davidson | FLHRSI Road King Custom, FXDI Dyna Super Glide, FXDLI Dyna Low Rider, FXDWGI Dyna Wide Glide |
| 2003-2006 | Harley-Davidson | FLHTI Electra Glide Standard |
| 2001-2006 | Harley-Davidson | FLSTCI Heritage Softail Classic, FLSTFI Fat Boy, FXSTBI Night Train, FXSTDI Softail Deuce, FXSTI Softail Standard, FXSTSI Springer Softail |
| 2000-2006 | Harley-Davidson | FLHRI Road King, FXSTS Springer Softail |
| 1999-2006 | Harley-Davidson | FLTRI Road Glide, FLHRCI Road King Classic, Electra Glide Police FLHTP, Electra Glide Ultra Classic FLHTCU, FLHTCI Electra Glide Classic, FLHTCUI Electra Glide Ultra Classic |
| 2005 | Harley-Davidson | FLHTCSE2 Screamin Eagle Electra Glide 2, 15th Anniversary Fat Boy FLSTF |
| 2004-2005 | Harley-Davidson | FXDXI Dyna Super Glide Sport |
| 1999-2005 | Harley-Davidson | FXDX Dyna Super Glide Sport |
| 2004 | Harley-Davidson | FLHTCSE Screamin Eagle Electra Glide |
| 2003-2004 | Harley-Davidson | FXSTDSE Screamin Eagle Softail Deuce |
| 2003 | Harley-Davidson | FLHRSEI2 Screamin Eagle Road King 2 |
| 2001-2003 | Harley-Davidson | FLSTSI Heritage Springer, FXDXT Dyna Super Glide T-Sport |
| 2000-2003 | Harley-Davidson | FLSTS Heritage Springer |
| 2000, 2002-2003 | Harley-Davidson | Wide Glide EFI FXDWGI |
| 2002 | Harley-Davidson | FLHRSEI Screamin Eagle Road King, FXDWG3 CVO Dyna Wide Glide |
| 2000, 2002 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
| 2001 | Harley-Davidson | FLTRSEI2 Screamin Eagle Road Glide 2, FXDWG2 CVO Dyna Wide Glide |
| 2000 | Harley-Davidson | FLTRSEI Screamin Eagle Road Glide |
| 1999-2000 | Harley-Davidson | FXDS-Conv Dyna Convertible |
| 1999 | Harley-Davidson | Road King EFI FLHR |
| Product Title | Store SKU | MFR Part # |
|---|---|---|
| Feuling 9017 Oil Pump Gear Alignment Tool for Harley Twin Cam and M8 Milwaukee 8 | FMC-9017 | 9017 |
