Feuling

Feuling Intake 505 Exhaust 515 Bolt-in Reaper Cams Harley Sportster 00-17 1370

SKU: FMC-1370
(0)
Feuling

Feuling Intake 505 Exhaust 515 Bolt-in Reaper Cams Harley Sportster 00-17 1370

In stock
SKU: FMC-1370
(0)
$459.95

Got questions?
Feel free to contact us

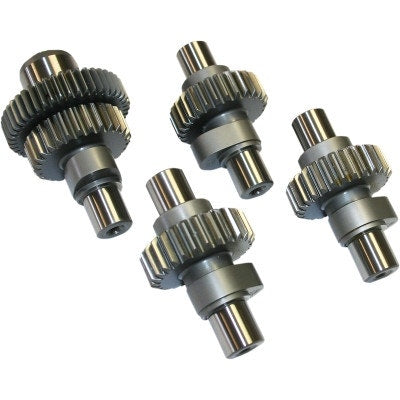

PART # 1370 505/515 Bolt-in REAPER® cams for XLs producing a wide power band in stock engines, a great way to take a Sporty to a hot new level of performance. Split lift camshaft with .505 lift on the intake and .515 lift on the exhaust produce a solid power band with top fuel sound. Can be used with stock pushrods and valve-springs, FEULING® recommends matching new camshafts with new lifters but not required.

Fits: 00-17 XL and 00-02 Buell as a direct bolt-in replacement for fine pitch pinion gear, cam set also fits 91-99 but requires pinion gear swap using HD # 24047-00 to convert the 91-99 wide pitch pinion gear to a fine pitch setup.

DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


Valve Lift Open Close Duration @ 53 lift @ TDC Lobe Centerline
Intake .505 11 48 239 .137 108.5
Exhaust .515 53 15 248 .150 109
RPM range: 2,100 - 6,800+ Grind: 515 Overlap: 26

Fits: 1991-2017 Harley-Davidson Sportster XL (91-99 require fine pitch pinion gear HD #24047-00)



YearsMakeModels
2018-2020Harley-DavidsonXL1200NS Iron 1200
2016-2020Harley-DavidsonXL1200CX Roadster
2010-2020Harley-DavidsonXL1200X Forty-Eight
2009-2020Harley-DavidsonXL883N Iron 883
2018-2019Harley-DavidsonXL1200XS Forty-Eight Special
2011-2019Harley-DavidsonXL883L SuperLow
2000-2019Harley-DavidsonXL1200C Sportster 1200 Custom
2014-2017Harley-DavidsonXL1200T SuperLow 1200T
2002-2003, 2011-2017Harley-Davidson1200 XLCP
2012-2016Harley-DavidsonXL1200V Seventy-Two
2011-2012Harley-DavidsonSportster 1200 XR
2010-2012Harley-DavidsonXR1200X
2007-2012Harley-DavidsonXL1200N Sportster 1200 Nightster
2006-2011Harley-DavidsonXL1200L Sportster 1200 Low
2010Harley-DavidsonXR1200
2005-2010Harley-DavidsonXL883L Sportster 883 Low
2009Harley-Davidson883 EFI XL, Sportster 1200 X XR
2004-2009Harley-DavidsonXL1200R Sportster 1200 Roadster
2000-2009Harley-DavidsonXL883C Sportster 883 Custom
2004-2008Harley-DavidsonXL883 Sportster
2007Harley-Davidson883 Roadster XLR, XL50 50th Anniversary Sportster
2002-2003, 2005-2007Harley-DavidsonXL883R Sportster 883 Roadster
2006Harley-Davidson1200 Low EFI XLL, 1200 Roadster EFI XLR, 883 Low EFI XLL
2002-2006Harley-Davidson1200 Custom EFI XLC
2002, 2005-2006Harley-Davidson883 Roadster EFI XLR
2000, 2002-2006Harley-Davidson883 Custom EFI XLC
2002-2003Harley-DavidsonXLH883HUG Sportster 883 Hugger
2000-2003Harley-DavidsonSportster 1200 XLH, Sportster 883 XLH, XL1200S Sportster 1200 Sport
2000-2002BuellM2 Cyclone, S3 Thunderbolt, X1 Lightning
2000-2001Harley-DavidsonXLH883
2000BuellS3T Thunderbolt

Product Title Store SKU MFR Part #
Feuling Intake 505 Exhaust 515 Bolt-in Reaper Cams Harley Sportster 00-17 1370 FMC-1370 1370
