Feuling Intake 580 Reaper High Lift Cams Harley Sportster 00-17 1377
Feuling Intake 580 Reaper High Lift Cams Harley Sportster 00-17 1377
Couldn't load pickup availability

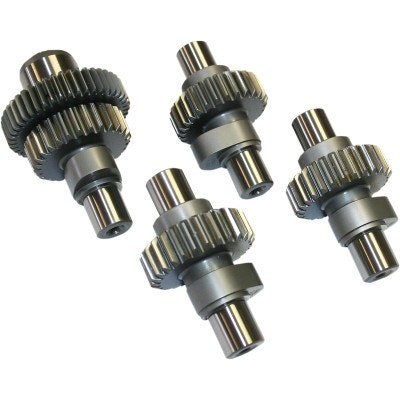

580 REAPER® high lift cams for XLs are designed for the rider who is looking for more horsepower with a higher RPM power band. Camshafts have .580 lift on both intake and exhaust, require high lift valve springs see FEULING® BEEHIVE® ENDURANCE ® or HIGH LOAD® valve springs, higher compression recommended with performance pushrods and lifters. High flow intake and performance exhaust required.
Fits: 00-17 XL and 00-02 Buell as a direct bolt-in replacement for fine pitch pinion gear, cam set also fits 91-99 but requires pinion gear swap using HD # 24047-00 to convert the 91-99 wide pitch pinion gear to a fine pitch setup.
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES
Valve Lift Open Close Duration @ 53 lift @ TDC Lobe Centerline
Intake .580 21 57 258 .193 108
Exhaust .580 67 21 268 .180 113
RPM range: 2,400 - 6,900+ Grind: 580 Overlap: 42
Fits: 1991-2017 Harley-Davidson Sportster XL (91-99 require fine pitch pinion gear HD #24047-00)
| Years | Make | Models |
|---|---|---|
| 2010-2022 | Harley-Davidson | XL1200X Forty-Eight |
| 2009-2022 | Harley-Davidson | XL883N Iron 883 |
| 2018-2020 | Harley-Davidson | XL1200NS Iron 1200 |
| 2016-2020 | Harley-Davidson | XL1200CX Roadster |
| 2018-2019 | Harley-Davidson | XL1200XS Forty-Eight Special |
| 2011-2019 | Harley-Davidson | XL883L SuperLow |
| 2000-2019 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2014-2017 | Harley-Davidson | XL1200T SuperLow 1200T |
| 2002-2003, 2011-2017 | Harley-Davidson | 1200 XLCP |
| 2012-2016 | Harley-Davidson | XL1200V Seventy-Two |
| 2011-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2012 | Harley-Davidson | XR1200X |
| 2007-2012 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2006-2011 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2010 | Harley-Davidson | XR1200 |
| 2005-2010 | Harley-Davidson | XL883L Sportster 883 Low |
| 2009 | Harley-Davidson | 883 EFI XL, Sportster 1200 X XR |
| 2004-2009 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2000-2009 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2004-2008 | Harley-Davidson | XL883 Sportster |
| 2007 | Harley-Davidson | 883 Roadster XLR, XL50 50th Anniversary Sportster |
| 2002-2003, 2005-2007 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2006 | Harley-Davidson | 1200 Low EFI XLL, 1200 Roadster EFI XLR, 883 Low EFI XLL |
| 2002-2006 | Harley-Davidson | 1200 Custom EFI XLC |
| 2002, 2005-2006 | Harley-Davidson | 883 Roadster EFI XLR |
| 2000, 2002-2006 | Harley-Davidson | 883 Custom EFI XLC |
| 2002-2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 2000-2003 | Harley-Davidson | Sportster 1200 XLH, Sportster 883 XLH, XL1200S Sportster 1200 Sport |
| 2002 | Buell | M2L Cyclone, X1W White Lightning, XB9R Firebolt |
| 2000-2002 | Buell | Blast, M2 Cyclone, S3 Thunderbolt, S3T Thunderbolt, X1 Lightning |
| 2001 | Buell | M2 Cyclone Low |
| 2000-2001 | Harley-Davidson | XLH883 |
| Product Title | Store SKU | MFR Part # |
|---|---|---|
| Feuling Intake 580 Reaper High Lift Cams Harley Sportster 00-17 1377 | FMC-1377 | 1377 |
