BULLETPROOF® RACE SERIES® CAMCHEST KIT!
FOR HYDRAULIC CHAIN TENSIONER CONVERSION UPGRADE

FEULING® complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

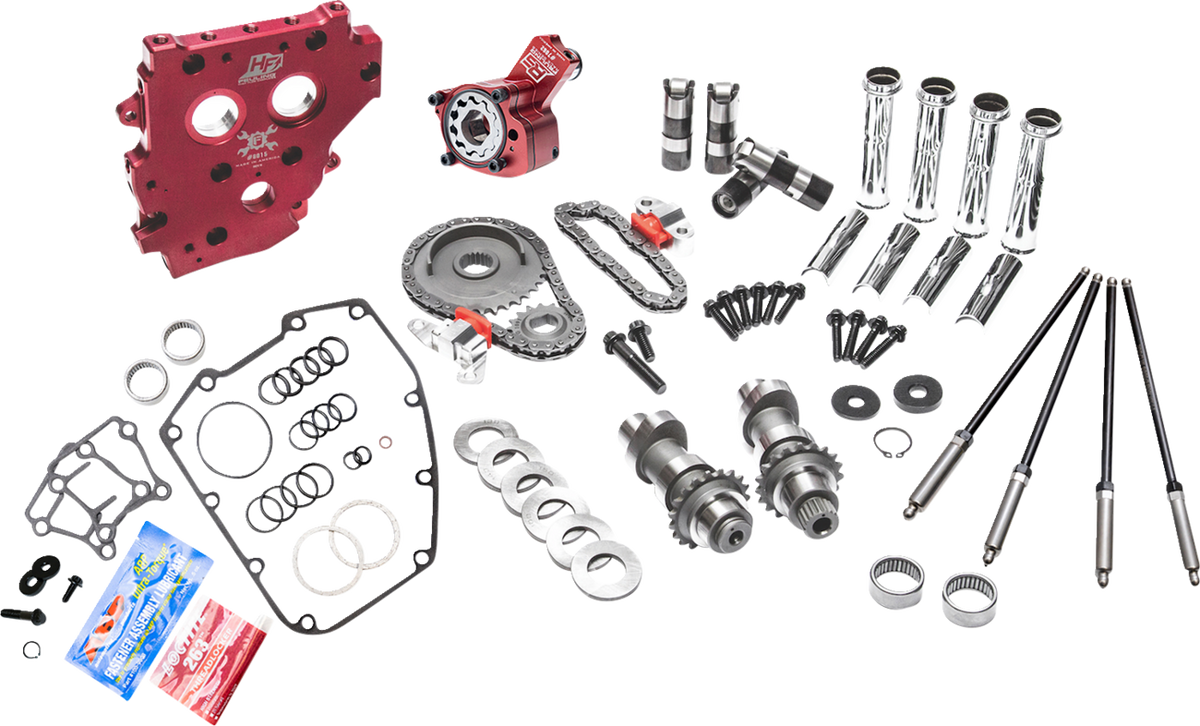

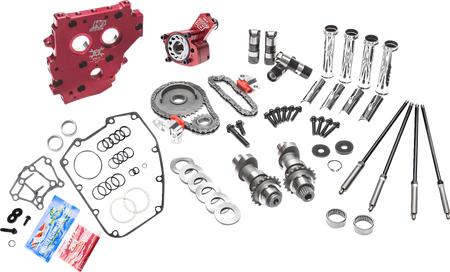

RACE SERIES® Complete Conversion Camchest Kits include: FEULING® RACE SERIES® high volume Oil pump, high flow Camplate, REAPER® Series Conversion Camshafts, RACE SERIES® hydraulic roller Lifters, One Piece Pushrods, Hydraulic tensioners pads and housings, Sprockets, Roller chains, Cam sprocket alignment spacers, Timken® Bearings, Gaskets, O-rings, Exhaust gaskets, ARP® fasteners, washers, moly paste, Loctite®, and hardware.

Camchest kits are available in FEULING® HP+® and RACE SERIES® combinations and with gear drive or chain drive REAPER® camshafts. Fitments available for 99-17 Twin Cam® engines. 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure, quieter and smoother engine operation, eliminate wet sumping, blow by and oily air cleaners.

UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM

Conversion camshafts for 99-06 Twin Cam engines. These camshafts utilize the 99-06 inner cam journals with the 07-17 outer cam journals allowing the use of the 07-17 camplates, oil pump, hydraulic chain tensioners and chain drive system.


574 CAMS - Wicked power band for modified engines and an excellent bolt in for stock 96, 103 & 110 engines. This is a great all around camshaft with solid low end performance and mind blowing mid and top end power. Extremely smooth cam lobe design creates a very smooth valve-train motion. Responds very well to modified cylinder heads, increased compression ratio, performance exhaust and intake systems. Performance valve springs are required on 99-04 engines and performance pushrods and lifters are recommended. RPM 2,100 - 6,500

DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES

FITS:

TC 99-06 Except 06 Dyna, Conversion chain drive cams, 574 Reaper camshafts #1017, Crank sprocket #1091, Cam sprocket with timing tab #1094, Cam install kit #2064, Race Series Lifters #4050, One Piece Pushrods #4072, Race Series oil pump #7062, High Flow camplate #8015, ARP Camplate/Oil Pump Fasteners #8020, Sprocket spacers #8041, Inner cam chain #8060, Outer cam chain #8061, Outer tensioner pad and housing #8075, Inner tensioner pad and housing #8076.

KIT SKU'S:

1017, 1091, 1094, 2064, 4050, 4072, 7062, 8015, 8020, 8041, 8060, 8061, 8075, 8076
