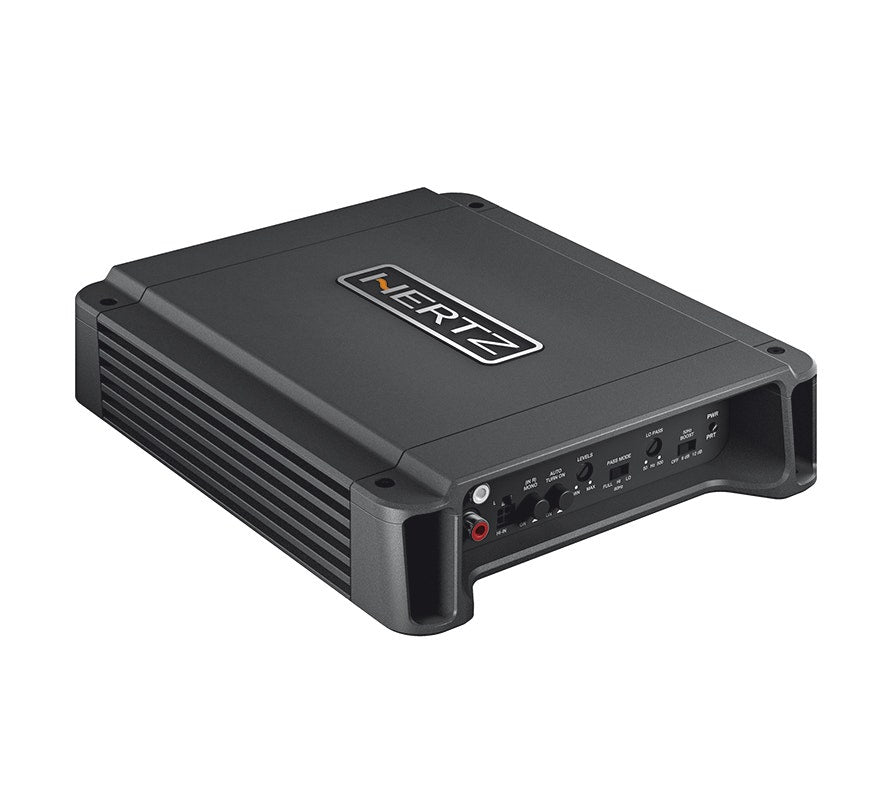

Hertz Compact Power HCP 2 AB-Class Stereo Amplifier

HCP 2 is a stereo, 400W car audio amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. With HCP 2 high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 ÷ 12 dB) to enhance low frequencies.

Fits:

Channel mode	2 - 1
Output Power (RMS)  @ 14.4 VDC	2 Ch: 65 W x 2 (4?) 2 Ch: 100 W x 2 (2?) 1 Ch: 200 W x 1 (4?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass	Yes 80 Hz @ 12 dB/Oct. 50 -
Distortion - THD  (100Hz @ 4Ω)	0.01%
S/N Ratio  (A weighted @ 1V)	103 dB
Damping factor  (100Hz @ 4Ω)	200
Size W x D x H  mm (in.)	215 x 190 x 50 (8.46 x 7.48 x 1.97)

Channel mode	2 - 1
Output Power (RMS)  @ 14.4 VDC	2 Ch: 65 W x 2 (4?) 2 Ch: 100 W x 2 (2?) 1 Ch: 200 W x 1 (4?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass	Yes 80 Hz @ 12 dB/Oct. 50 -
Distortion - THD  (100Hz @ 4Ω)	0.01%
S/N Ratio  (A weighted @ 1V)	103 dB
Damping factor  (100Hz @ 4Ω)	200
Size W x D x H  mm (in.)	215 x 190 x 50 (8.46 x 7.48 x 1.97)
