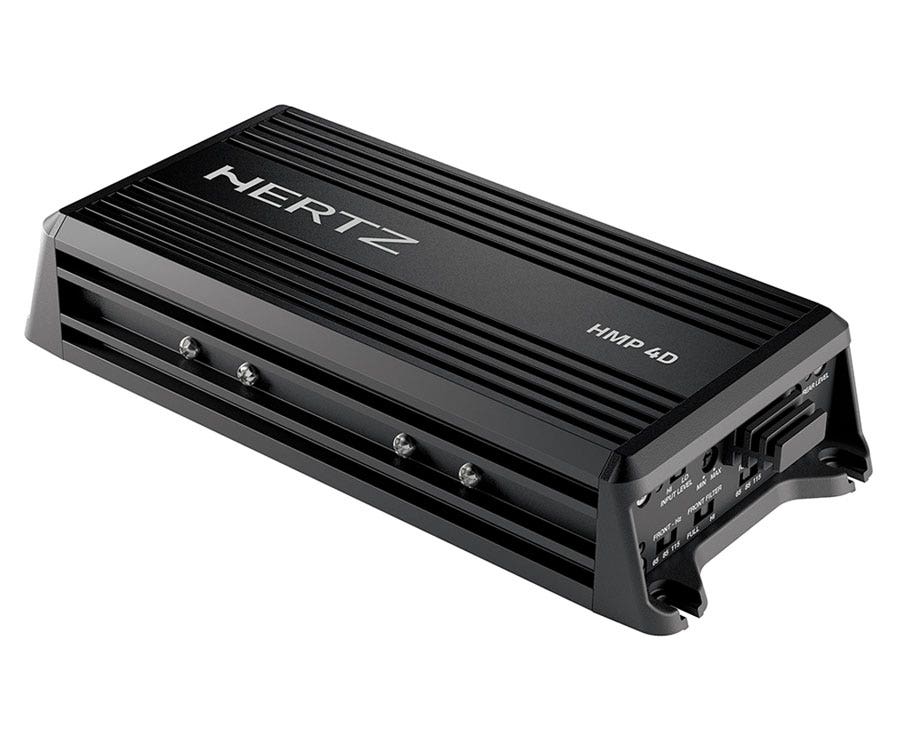

Hertz HMP 4D 4 Channel 300W Compact Powersports & Marine Audio Power Amplifier
Regular price
$415.00
Couldn't load pickup availability

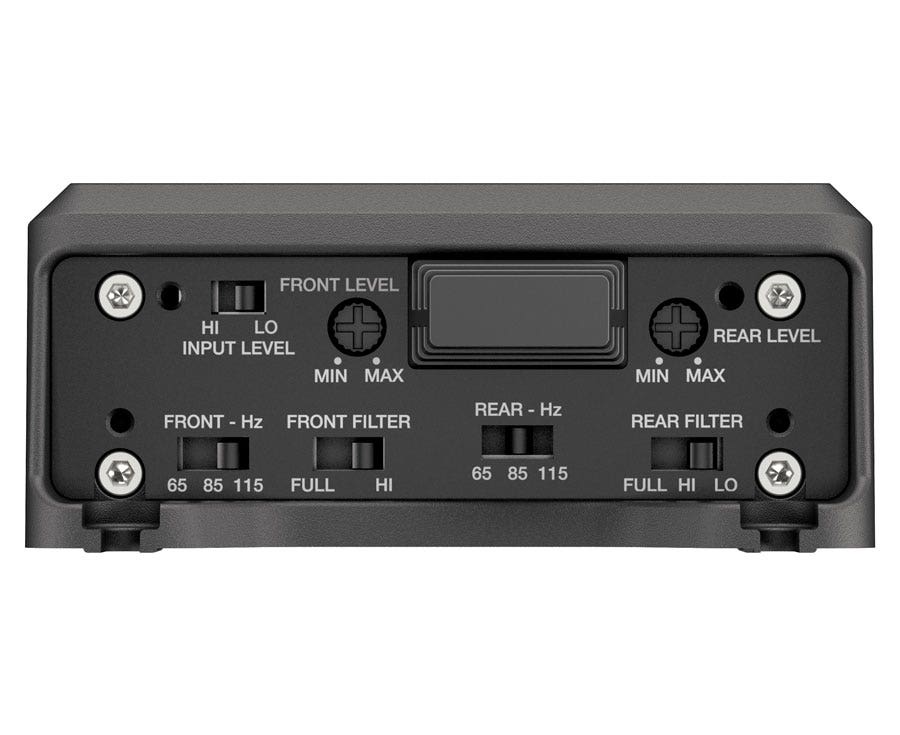

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 4D amplifier is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.
Fits:
Fits:
| Channel mode | 4 - 2 |
|
Output Power (RMS) @ 14.4 VDC |
60 W x 4 (4 ?) 75 W x 4 (2 ?) 150 W x 2 (4 ?) |
|
Filters Bypass Hi-Pass Lo-Pass |
Yes 65-85-115 Hz @ 12 dB/Oct. 65-85-115 Hz @ 12 dB/Oct. |
|
Distortion - THD (100Hz @ 4Ω) |
0.2 % |
|
S/N Ratio (A weighted @ 1V) |
95 dB |
|
Damping factor (100Hz @ 4Ω) |
45 |
|
Size W x D x H mm (in.) |
223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71 |
| Channel mode | 4 - 2 |
| Output Power (RMS) @ 14.4 VDC |
60 W x 4 (4 ?) 75 W x 4 (2 ?) 150 W x 2 (4 ?) |
| Filters Bypass Hi-Pass Lo-Pass |
Yes 65-85-115 Hz @ 12 dB/Oct. 65-85-115 Hz @ 12 dB/Oct. |
| Distortion - THD (100Hz @ 4Ω) |
0.2 % |
| S/N Ratio (A weighted @ 1V) |
95 dB |
| Damping factor (100Hz @ 4Ω) |
45 |
| Size W x D x H mm (in.) |
223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71 |
| Product Title | Store SKU | MFR Part # |
|---|---|---|
| Hertz HMP 4D 4 Channel 300W Compact Powersports & Marine Audio Power Amplifier | HZ-HMP4D | HMP 4D |
