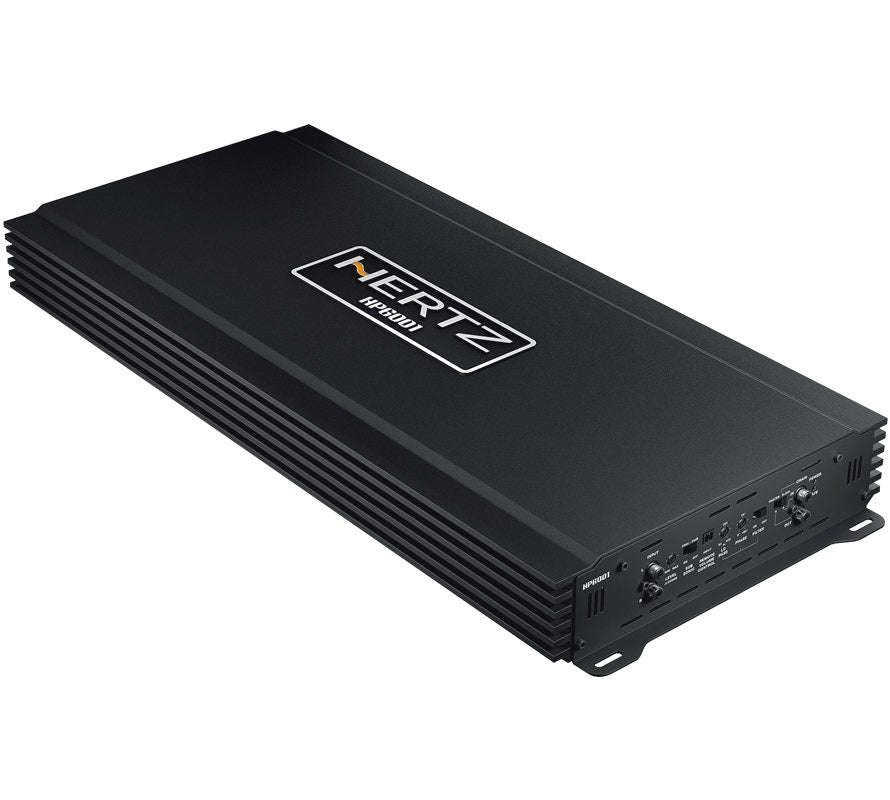

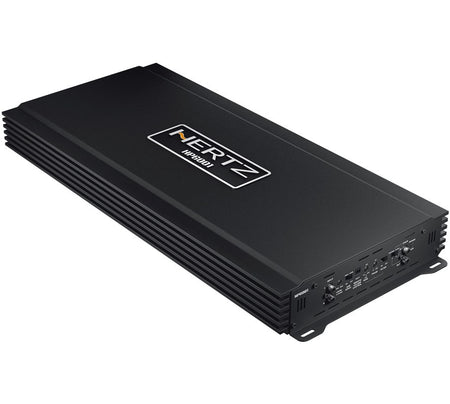

Hertz SPL Show D-Class Mono Amplifier w/ Crossover HP6001
Regular price
$1,359.99
Couldn't load pickup availability
HP 6001 is the most powerful spl car audio amplifier within the SPL Show line. The overbuilt power supply stage and the D Class output stage featuring 12 Mosfets provide the ability to deliver up to 6000W power.

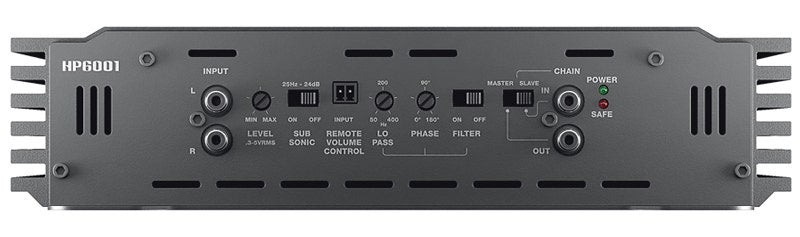

The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, make HP 6001 an extremely powerful amplifier, perfect for SPL applications.
Thanks to the Chain Mode function, to cascade a second amplifier into a single load, a devastating amount of power up to 12000W can be achieved with record SPL levels.
Fits:
Fits:
| Channel mode | 1 |
|
Output Power (RMS) @ 14.4 VDC |
1 Ch: 1670 W x 1 (4 Ω) 1 Ch: 2970 W x 1 (2 Ω) 1 Ch: 5000 W x 1 (1 Ω) |
|
Filters Lo-Pass |
50 ÷ 400 Hz @ 24 dB/Oct. |
|
Distortion - THD (100Hz @ 4Ω) |
0.1 % |
|
S/N Ratio (A weighted @ 1V) |
86 dB |
|
Damping factor (100Hz @ 4Ω) |
500 |
|
Size W x D x H mm (in.) |
644 x 280 x 65,5 (25.35 x 11.02 x 2.55) |
| Channel mode | 1 |
| Output Power (RMS) @ 14.4 VDC |
1 Ch: 1670 W x 1 (4 Ω) 1 Ch: 2970 W x 1 (2 Ω) 1 Ch: 5000 W x 1 (1 Ω) |
| Filters Lo-Pass |
50 ÷ 400 Hz @ 24 dB/Oct. |
| Distortion - THD (100Hz @ 4Ω) |
0.1 % |
| S/N Ratio (A weighted @ 1V) |
86 dB |
| Damping factor (100Hz @ 4Ω) |
500 |
| Size W x D x H mm (in.) |
644 x 280 x 65,5 (25.35 x 11.02 x 2.55) |
| Product Title | Store SKU | MFR Part # |
|---|---|---|
| Hertz SPL Show D-Class Mono Amplifier w/ Crossover HP6001 | HZ-HP6001 | HP 6001 |
