Mid USA Chrome Hardbody Antique Style Vintage 20" Springer Fork Front End 35235

• Fully assembled with in-line top bracket without built in rake (0° rake)

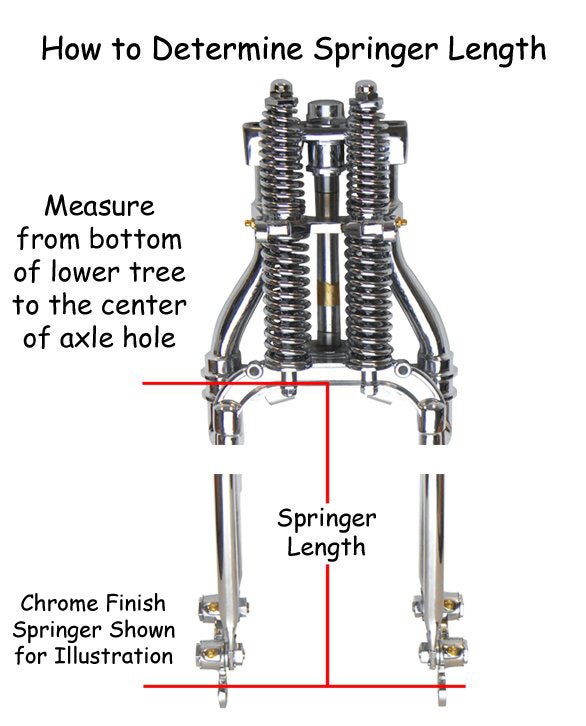

• The standard length Springer (20" measured from the bottom of the lower tree to the axle center) is comparible to vintage FL model fork length
• 1" O.D. steering stem designed for Timken^® type bearings
• Use our Part 36652 neck cup conversion kit to install Springer on K Model and Sportster 1952/1981
• Measures 8 3/4" between the axle rockers (Cast rockers)
• Includes 3/4" O.D. axle
• Rise mounts are on 4 3/4" centers and threaded 1/2-20
• Universal brake rod mount is on the right rear leg for disc brakes (5/8" hole

HARDBODY
Chrome Plated Springer, 20" length
Note: Same as vintage FL

Custom Applications
