Raw Dropped Swingarm 2" Lower Harley 4 Speed Chain Drive FL FX 73-84

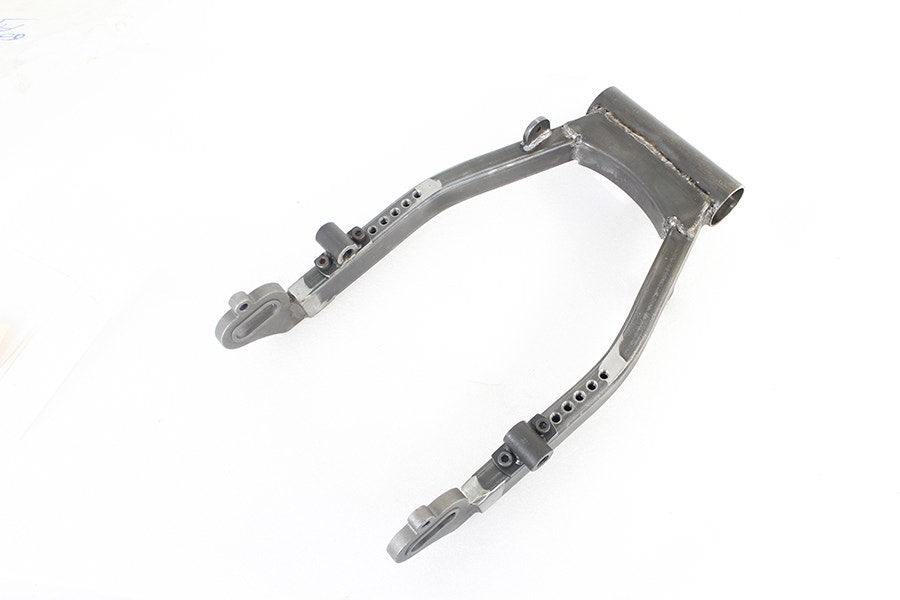

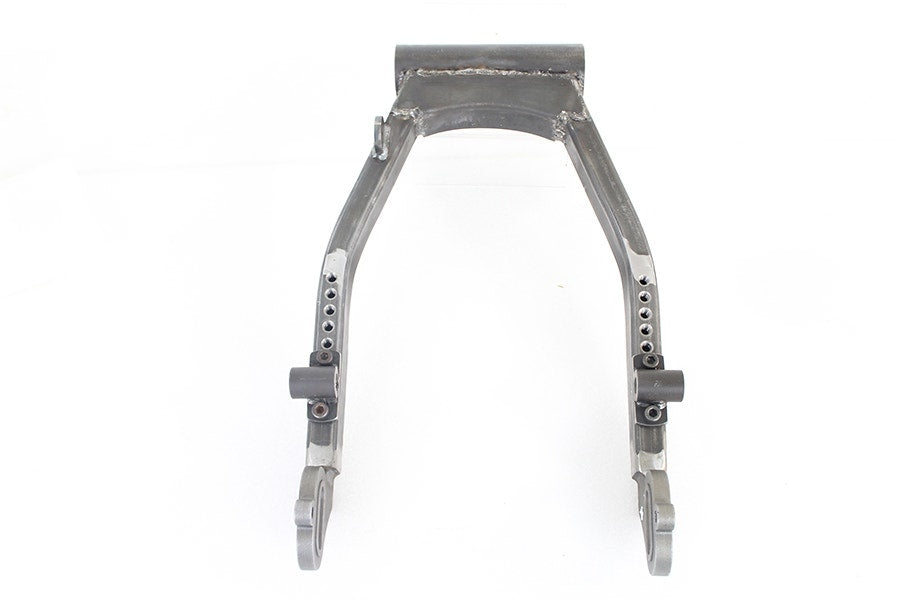

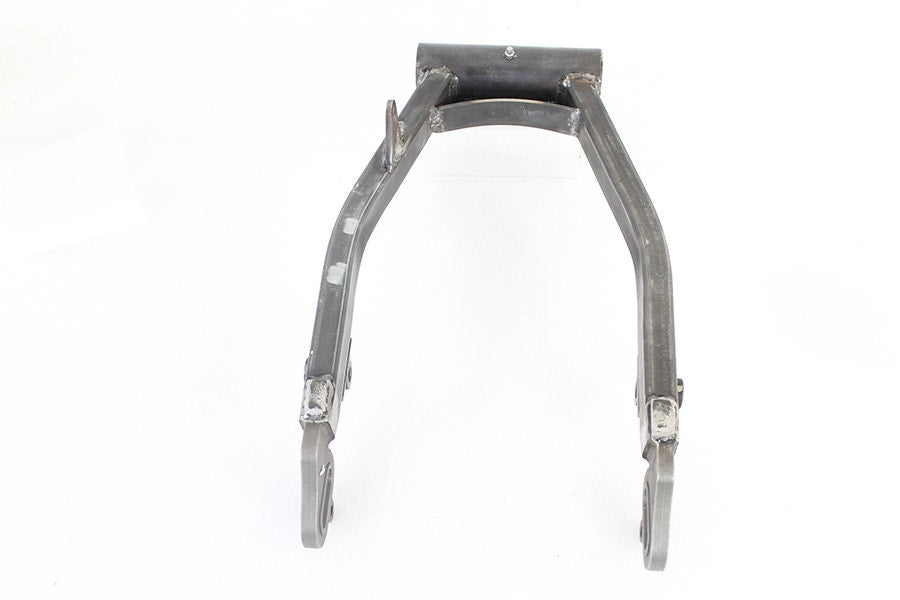

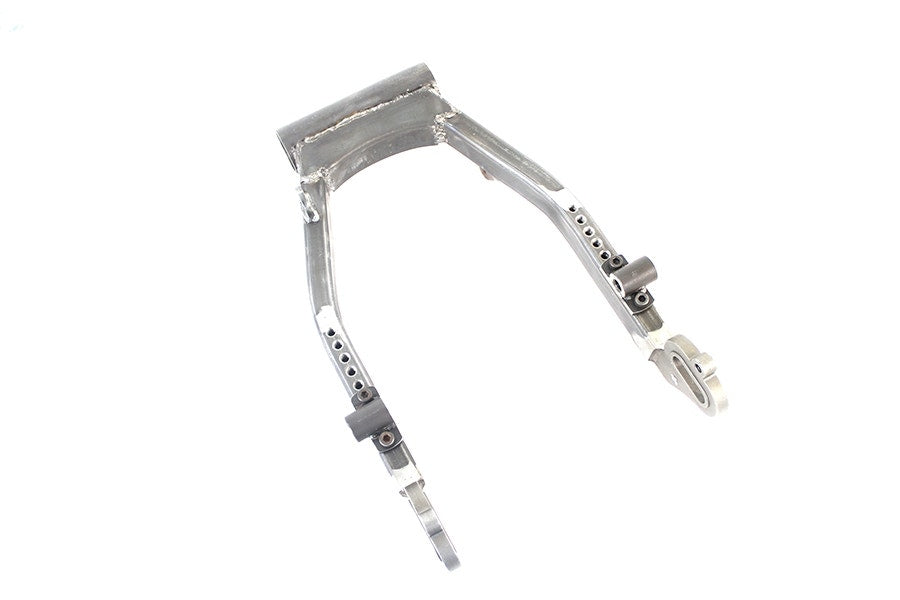

Raw finish dropped swingarm features a raised up axle position, so this lowers the swingarm and chassis in relation to the axle.

Axle slots are 3/4", for disc brake applications.

Swingarm is for use with 4 speed models.

Lowers bike 2" and lengthens wheel base 1/2". Axle lowering plates take screw type adjusters.

The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look.

There are 5/16 x 18 drilled and tapped holes on the swing arm for mounting and "floating".

*NOTE: Must order swingarm pivot pin assembly separately.

*NOTE: Race is installed, but the bearings are not included.

• FX 1973-1984 chain drive models only
• FL 1973-1984 chain drive models only
