IN BRAND NEW CONDITION

PART # P600X4

Fits: Universal 12V Automotive Applications

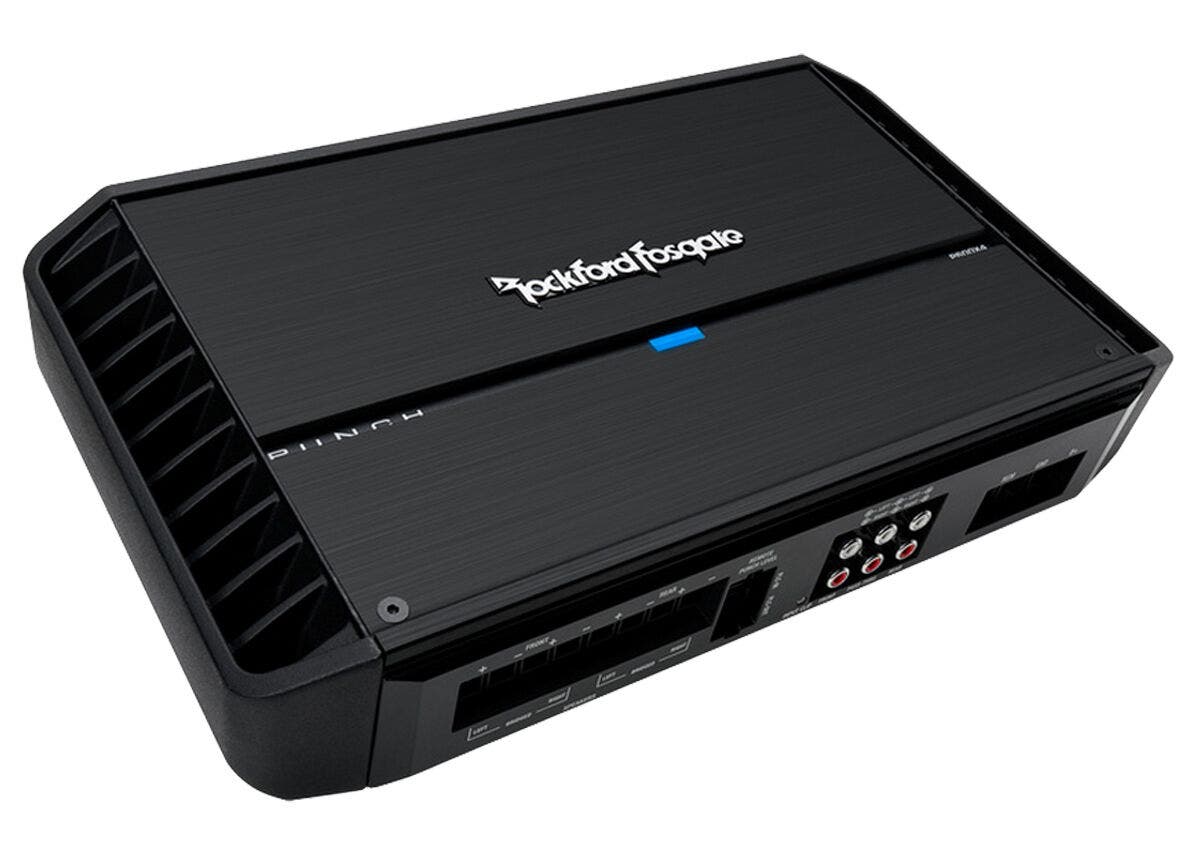

The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.

High level input capable with Auto Turn-On circuit
RCA pass-thru outputs
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on

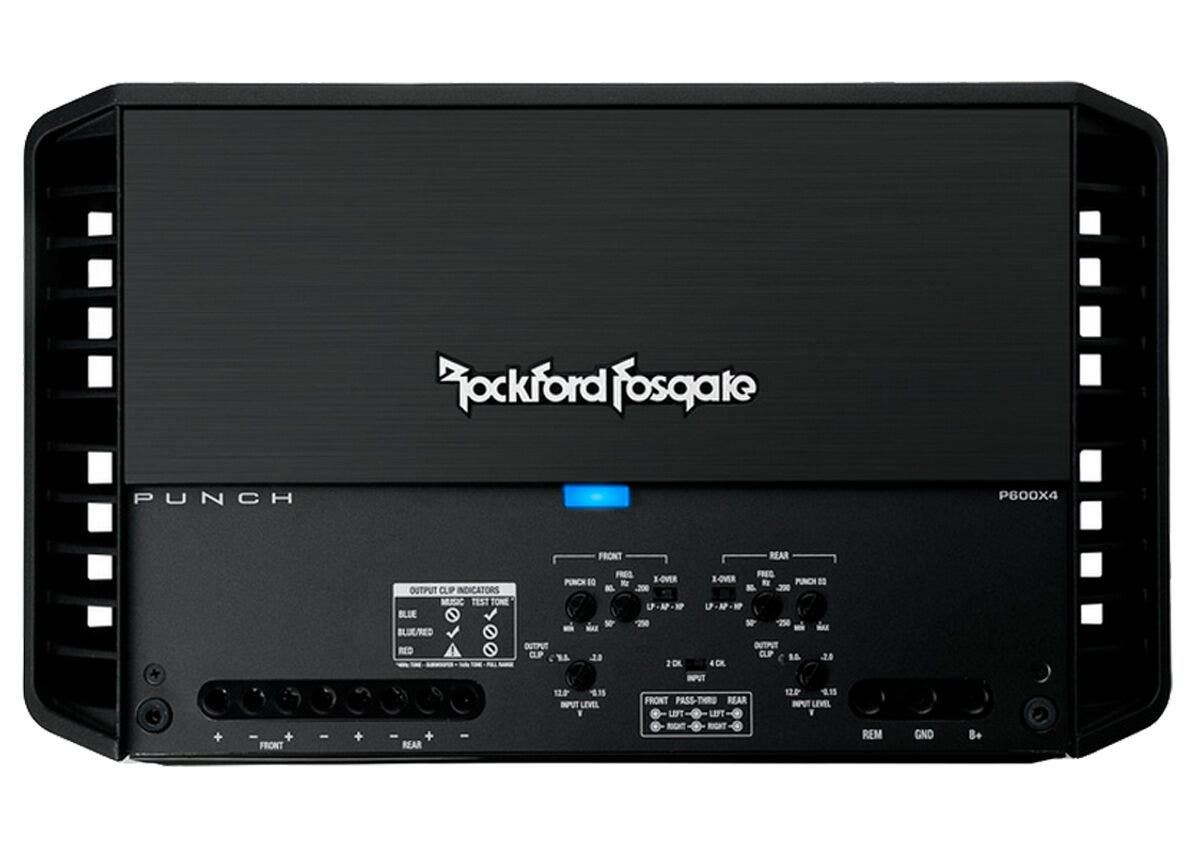

Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
1 Year Warranty

Rated Power (RMS Continuous Power)

75 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged

Number of Channels: 2

Frequency Response: 20Hz to 20kHz +/-1dB

Power Wire Gauge: 4 AWG

Speaker Wire Gauge: 8 AWG

Operating Voltage: 9 - 16 VDC

Average Current Draw: (13.8V Music) 45 A

Max. Current Draw: (13.8V Sinewave) 90 A

Dimensions: (H x W x D) 2.38 x 7.76 x 13.28 (in)

Country/region

Rockford Fosgate P600X4 Punch 400 Watt 2 Ch. Full Range Car Stereo Amplifier
