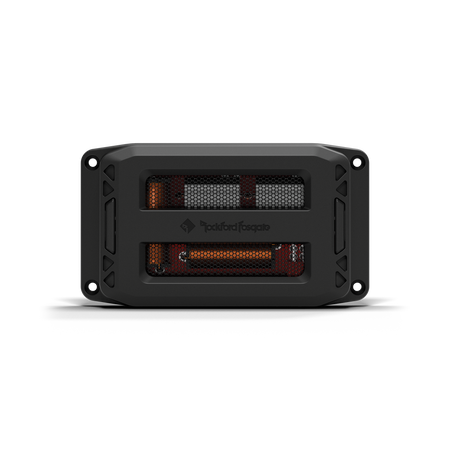

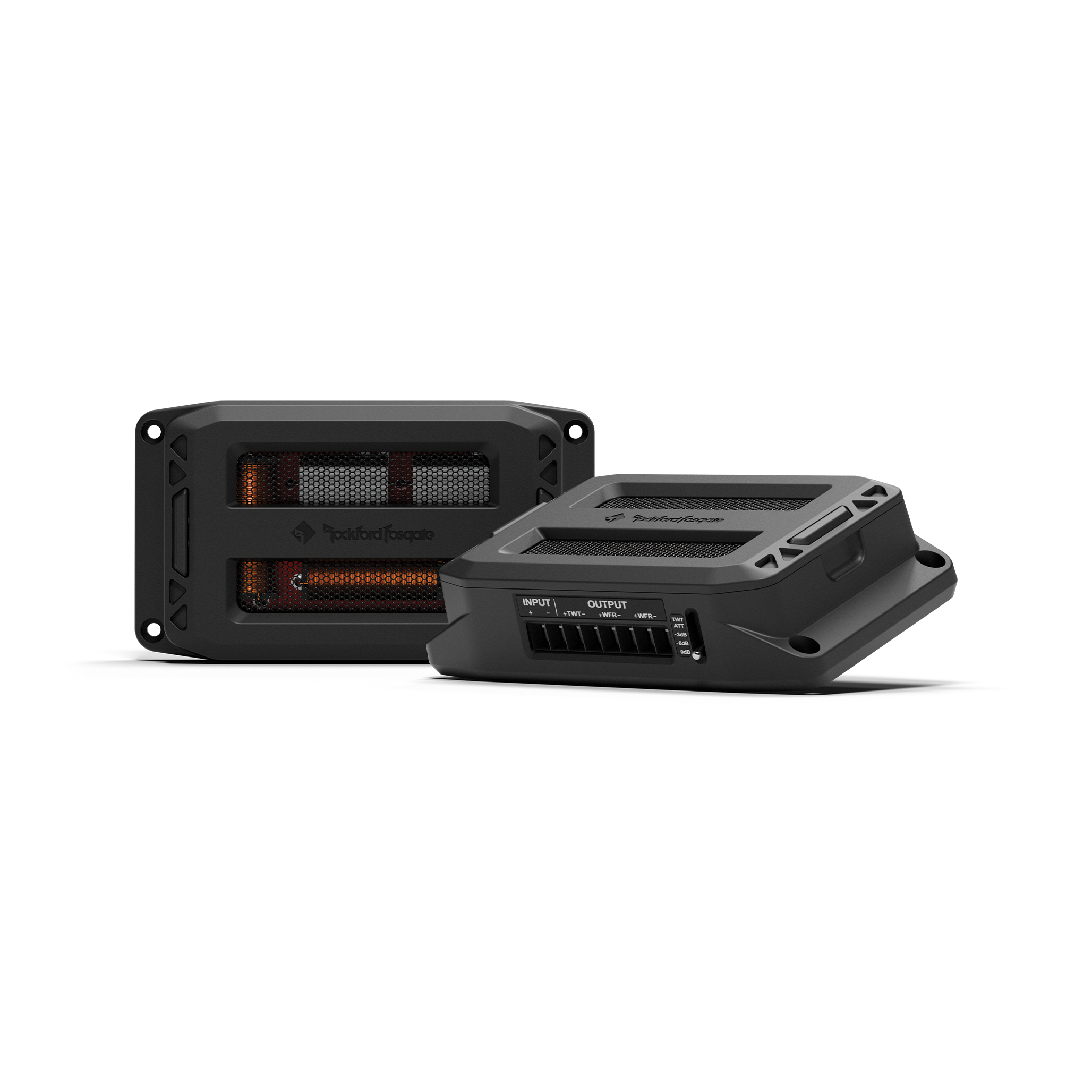

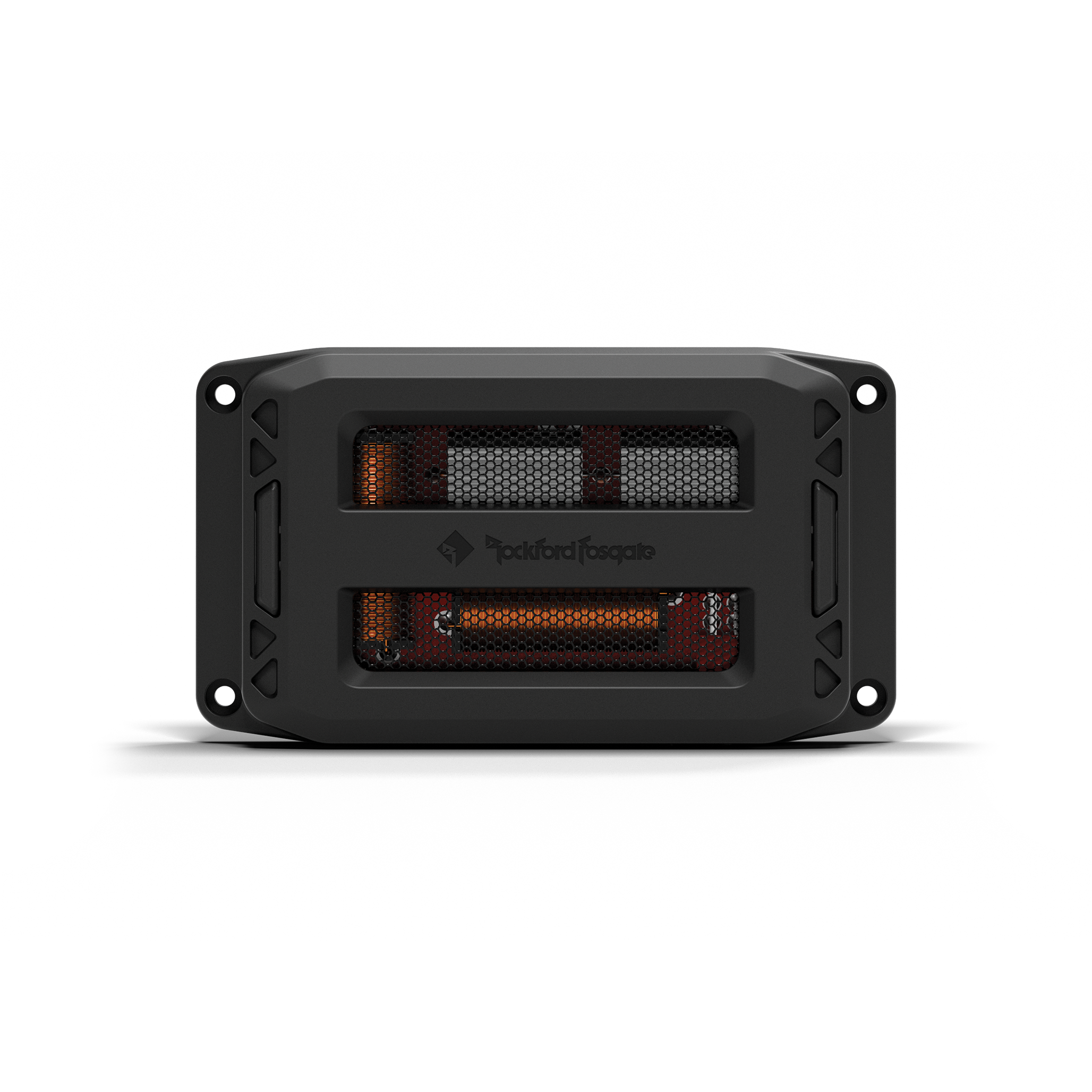

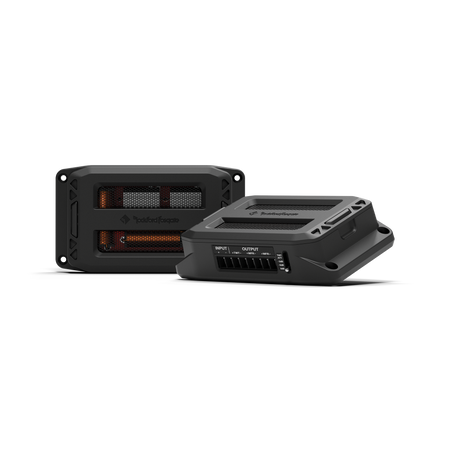

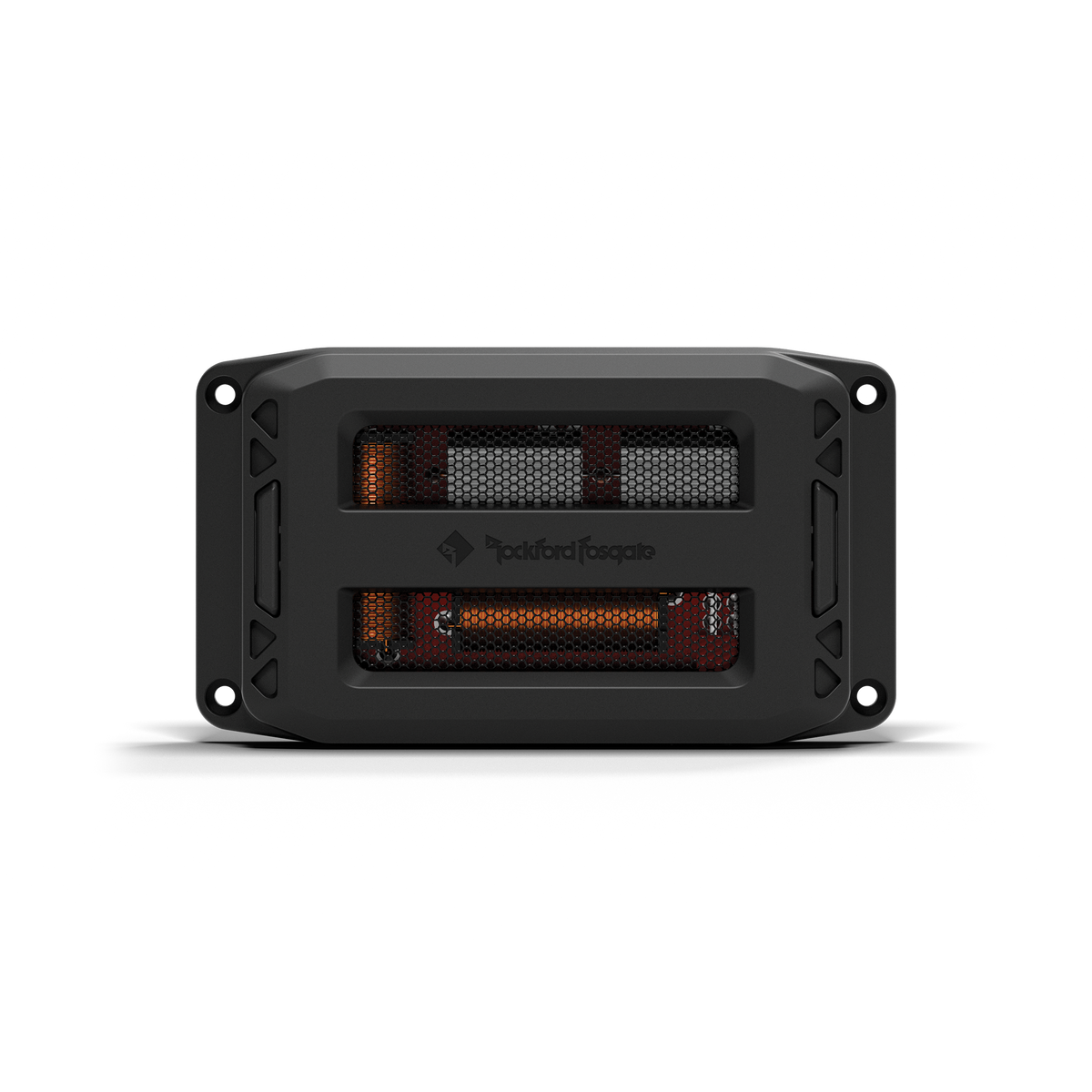

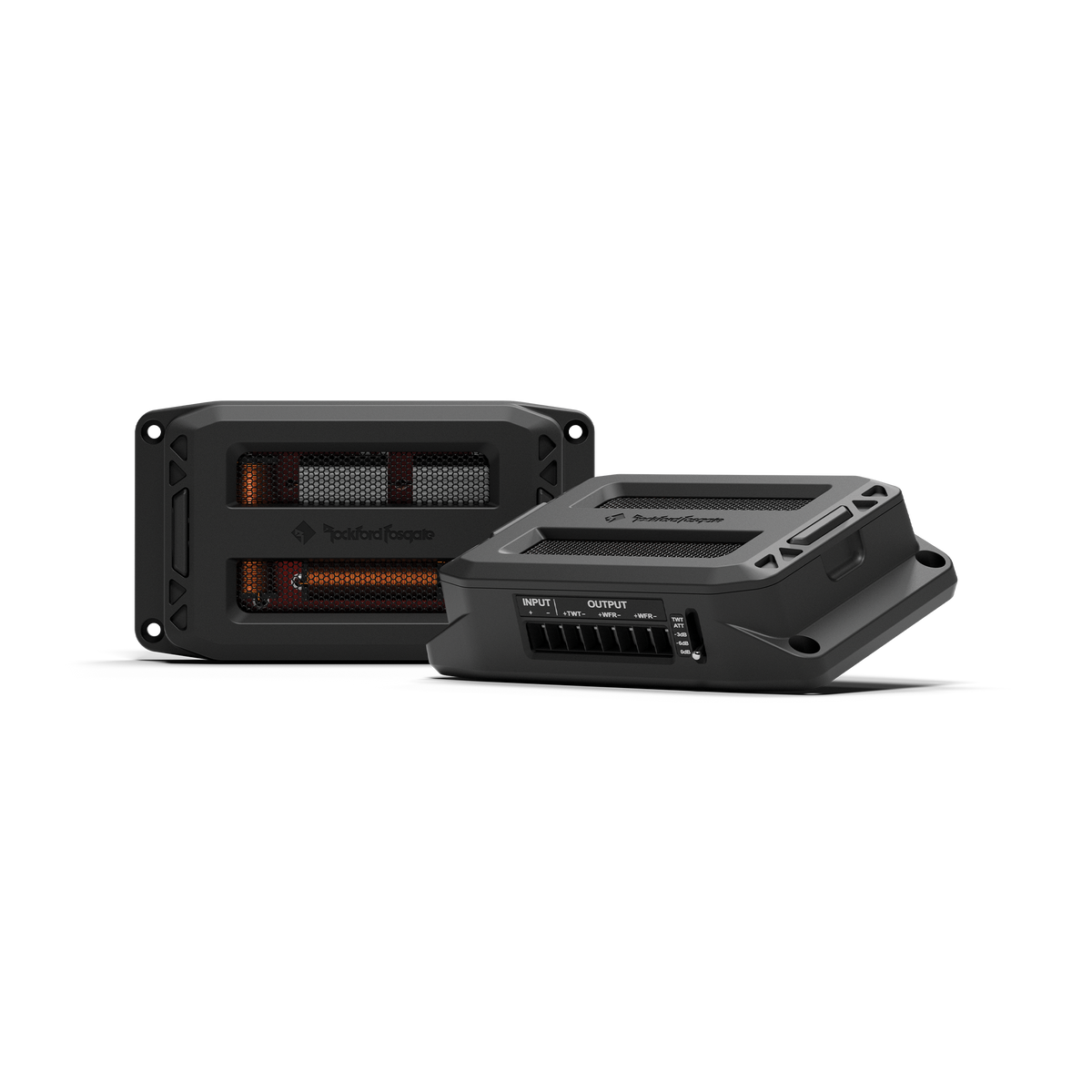

Rockford Fosgate Punch Pro 4-Ohm Passive Crossover

Only 1 left
SKU: RF-PPROV2-X
Regular price $199.99

The PUNCH PRO series are engineered to be the loudest speakers in the line up for SPL, purpose built for competition vehicles where maximum output matters most. Featuring ultra durable materials, they deliver relentless volume with uncompromising reliability. With multiple size and configuration options, PUNCH PRO delivers aggressive output, rugged durability, and the unmistakable PUNCH sound for performance focused builds. Sold in pairs (2 each).

Precision External LP Crossover: Engineered for accurate signal control, the external low-pass crossover enables seamless integration of dual midrange drivers and a tweeter while preserving sonic integrity under high-power conditions.

Flexible Tweeter Level Control: Three selectable attenuation levels (0 dB, –3 dB, –6 dB) allow precise tuning of high-frequency output, ensuring optimal tonal balance across a wide range of system configurations.

Optimized Midrange Filtering: Laminated steel-core inductors deliver low-loss, high-current handling for accurate filtering and smooth, controlled midrange response even at elevated output levels.

High-Power Thermal Management: Ceramic resistors, aluminum heatsinks, and a vented chassis work together to dissipate heat efficiently, maintaining consistent performance during extended, high-output listening sessions.



Crossover Type
Passive Crossover
Nominal Impedance
(Ohms)
For use with 4Ω speakers only
Power Handling
(Watts RMS)
225W RMS
450W Peak
Crossover Frequency
(Hz)
3kHz Low-Pass Only
Crossover Slope
(dB)
6dB/Octave
Crossover Attenuation
(dB)
0dB / -3dB /-6dB
Mounting Depth
Mounting Flange
3.16" x 5.57” (80.25 x 141.5 mm)
Cutout Diameter
Front Clearance
1.37” (34.7 mm)
Mounting Hardware
Yes
Included in the Box
(2) 4Ω Passive Crossovers
(8) #8 Hex Screws, 25 mm long
(1) 3 mm Hex Bit
(1) Cutout Template
Shipping Weight
2 Lbs. (0.91 Kg.)

Product Title Store SKU MFR Part #
Rockford Fosgate Punch Pro 4-Ohm Passive Crossover RF-PPROV2-X RF-PPROV2-X
