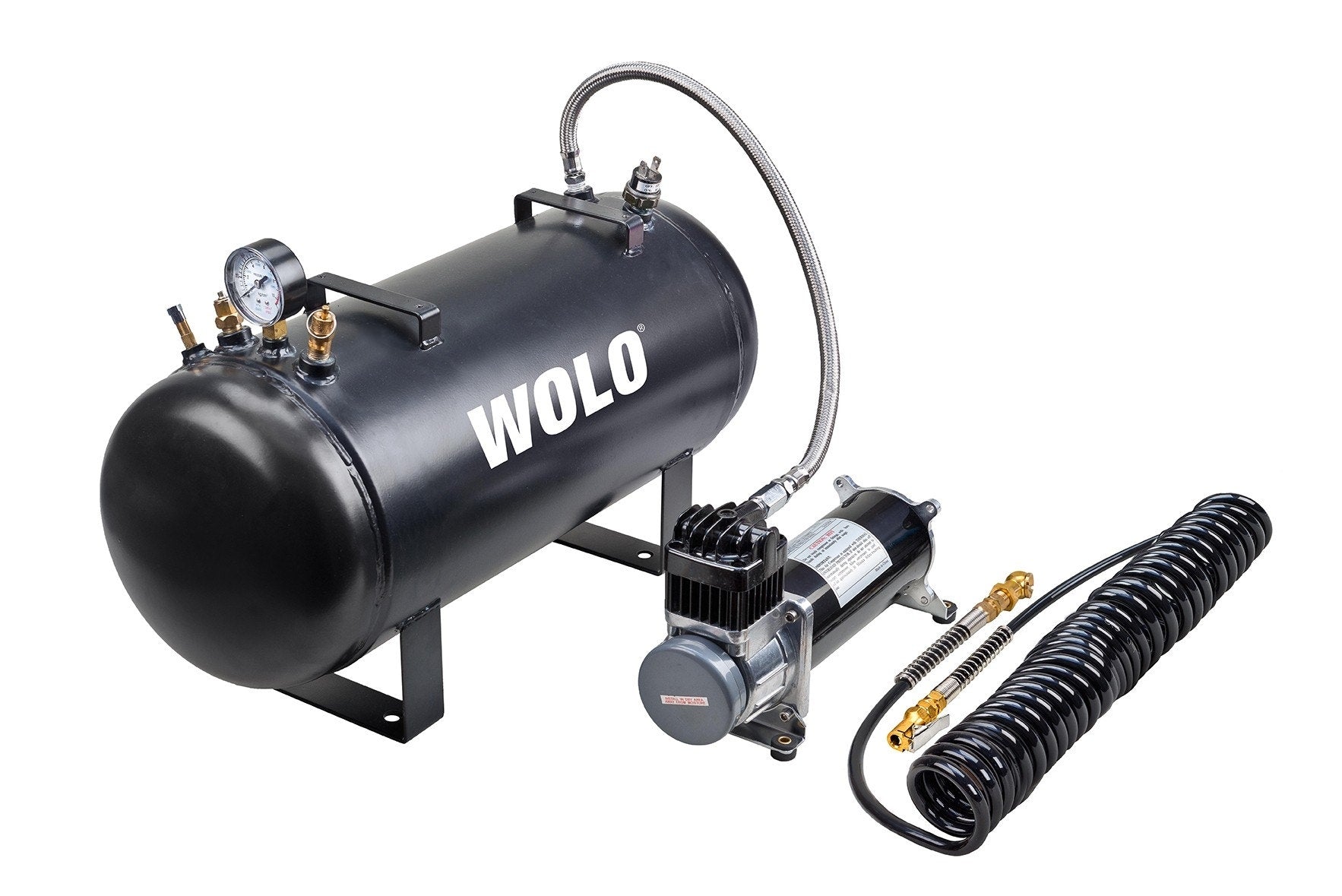

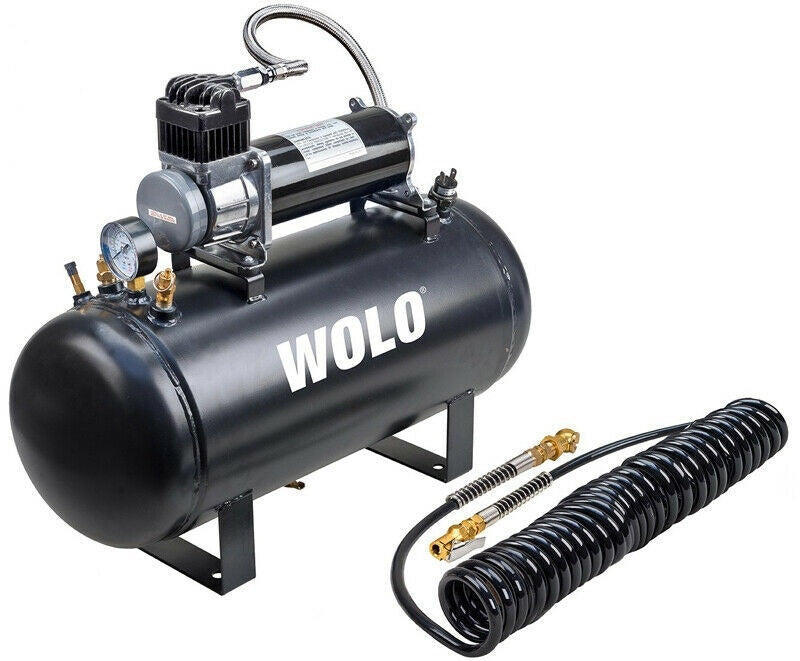

Heavy-duty 5 gallon steel tank is ideal for powering light-duty pneumatic tools. Includes coiled filler hose with brass fittings, ideal for filling shocks or sporting equipment.

• Painted black to prevent rust and corrosion
• 12-volt compressor motor
• Includes 10 ft. flexible high-pressure hose, 20 ft. coiled filler hose, mounting hardware and instructions

COMPRESSOR SPECIFICATIONS

• 12-Volt heavy-duty compressor
• Current: 22 amps at peak
• CFM: 3.5
• In-line fuse holder with 25 amp fuse provided
• Permanent magnetic motor that is gearless and thermally protection
• Oil-less maintenance free design
• High performance piston ring
• Moisture & dust resistant
• Painted aluminum alloy cylinder
• Mounting base has rubber vibration bushings
• Stainless steel braided hose with in-line check valve
•  Washable air filter
• Size: L 11-1/2 in. x W 3-1/2 in. x H 6-1/2 in.

TANK

• 5-Gallon
• Welded steel mounting brackets
• Petcock water drain
• Pressure switch 80 psi. auto-on / 120 psi. off
• Safety pressure relief valve rated at 150 psi.
• Pressure gauge
• Fitting all brass
• Size: L 20-1/2 in. x W 8-1/2 in. x H 17-1/2 in. Compressor mount on top of tank
• Size: L 20-1/2 in. x W 8-1/2 in. x H 10-1/2 in. Tank only.
